The Mayan Puzzle

The Mayan Puzzle is a multi-layered electromechanical system designed to guide the user through a sequence of constrained interactions. Rather than functioning as a conventional puzzle, it operates as a tightly integrated artifact where mechanical structure, embedded electronics, and narrative are inseparable.

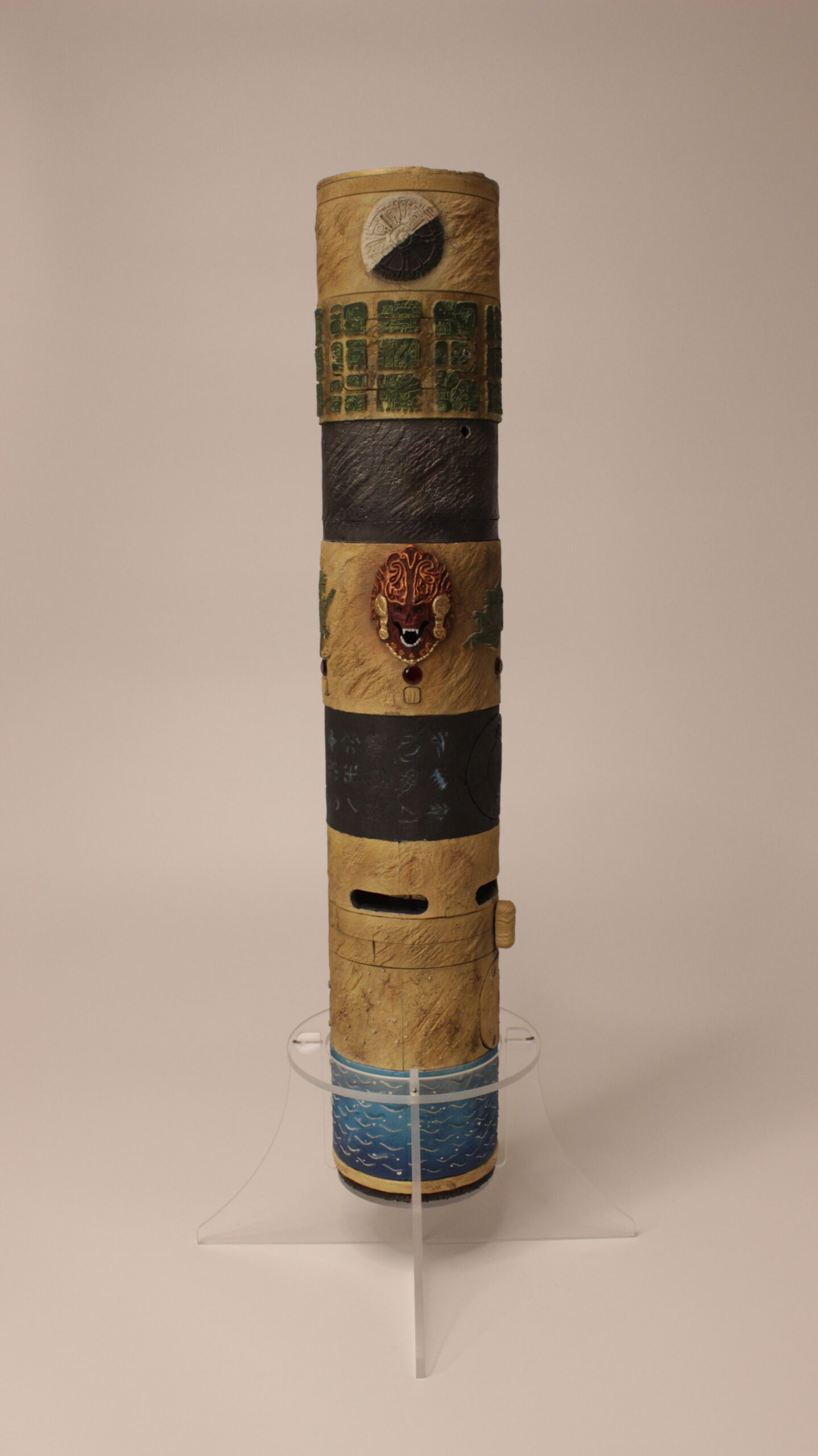

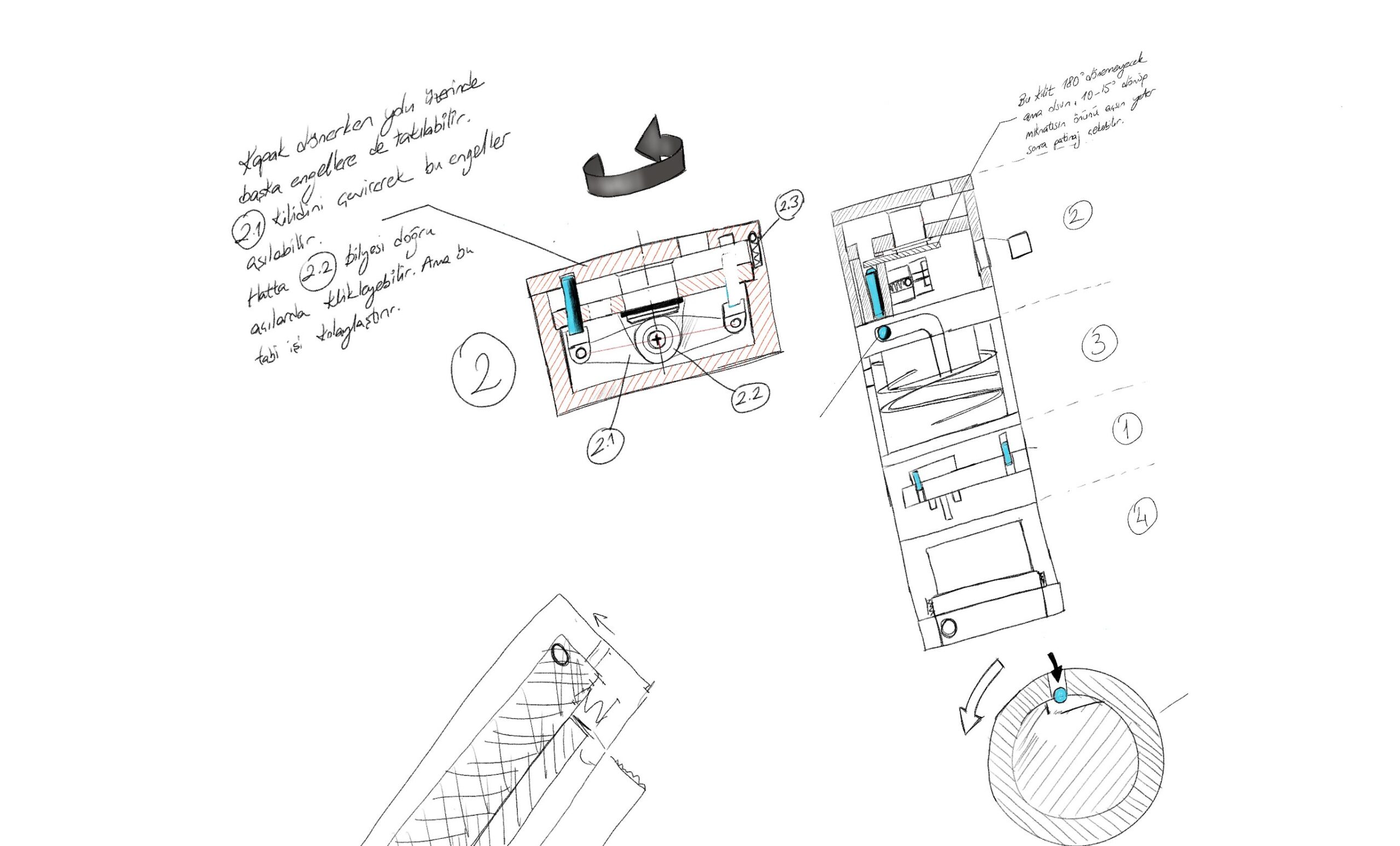

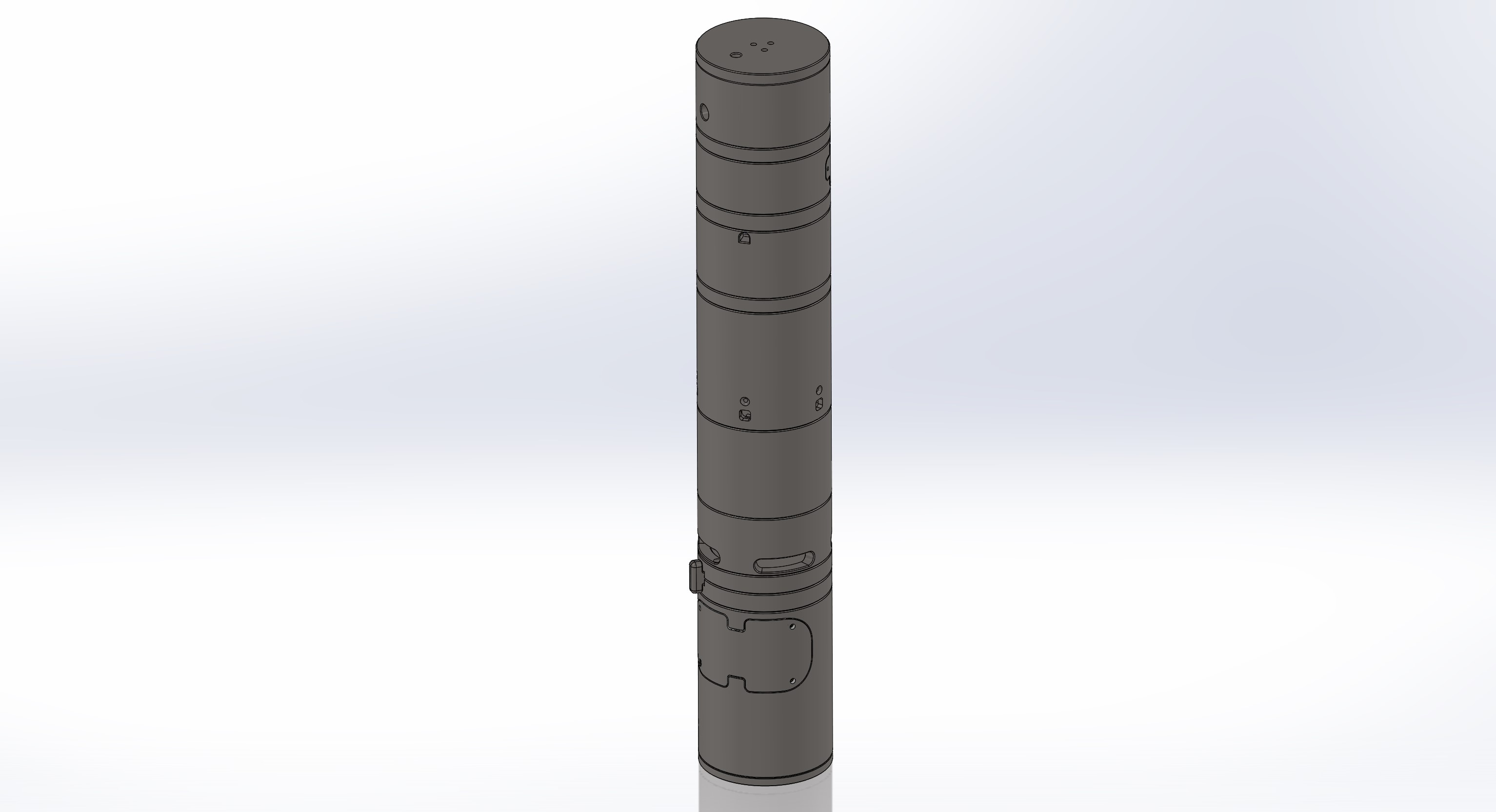

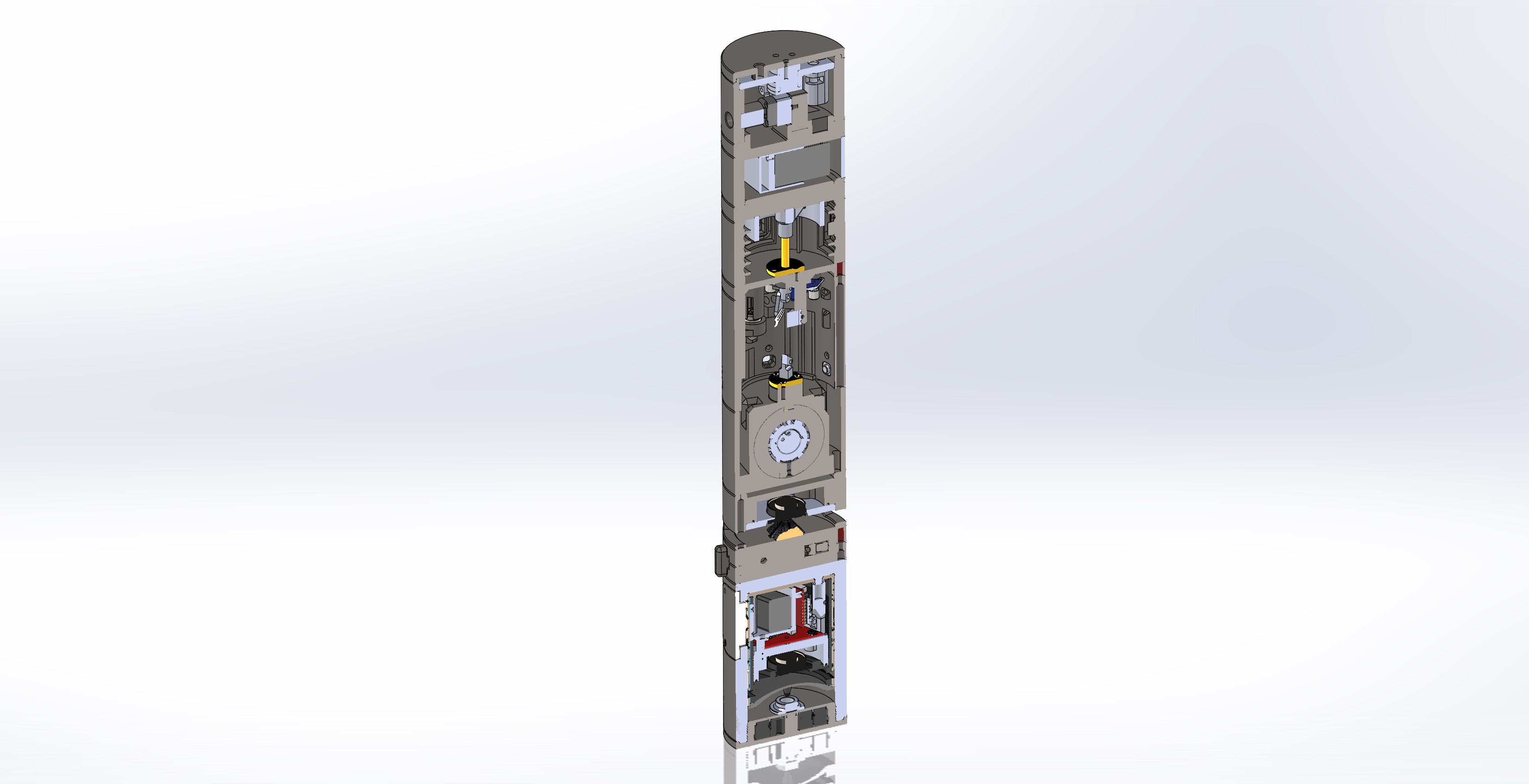

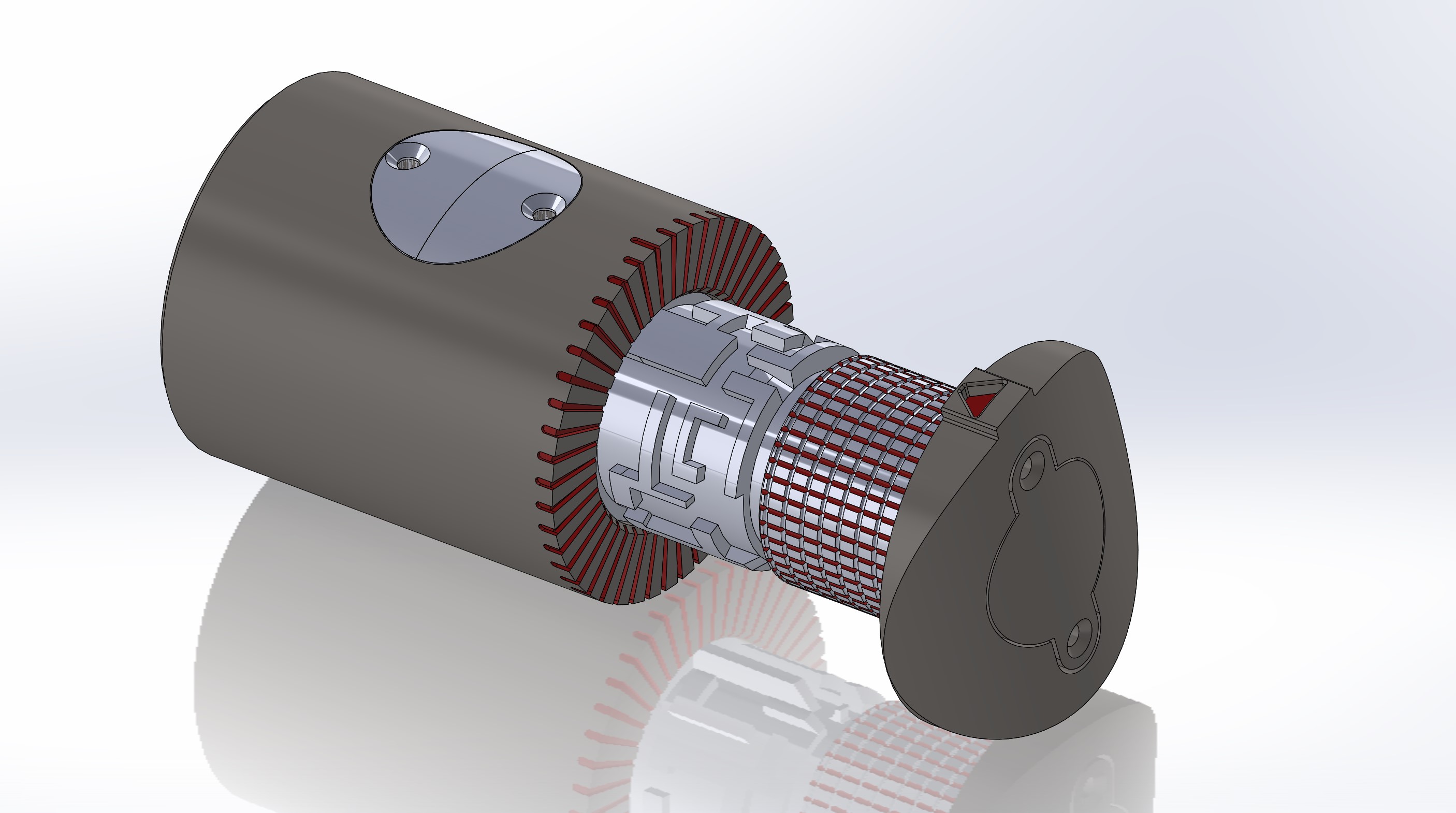

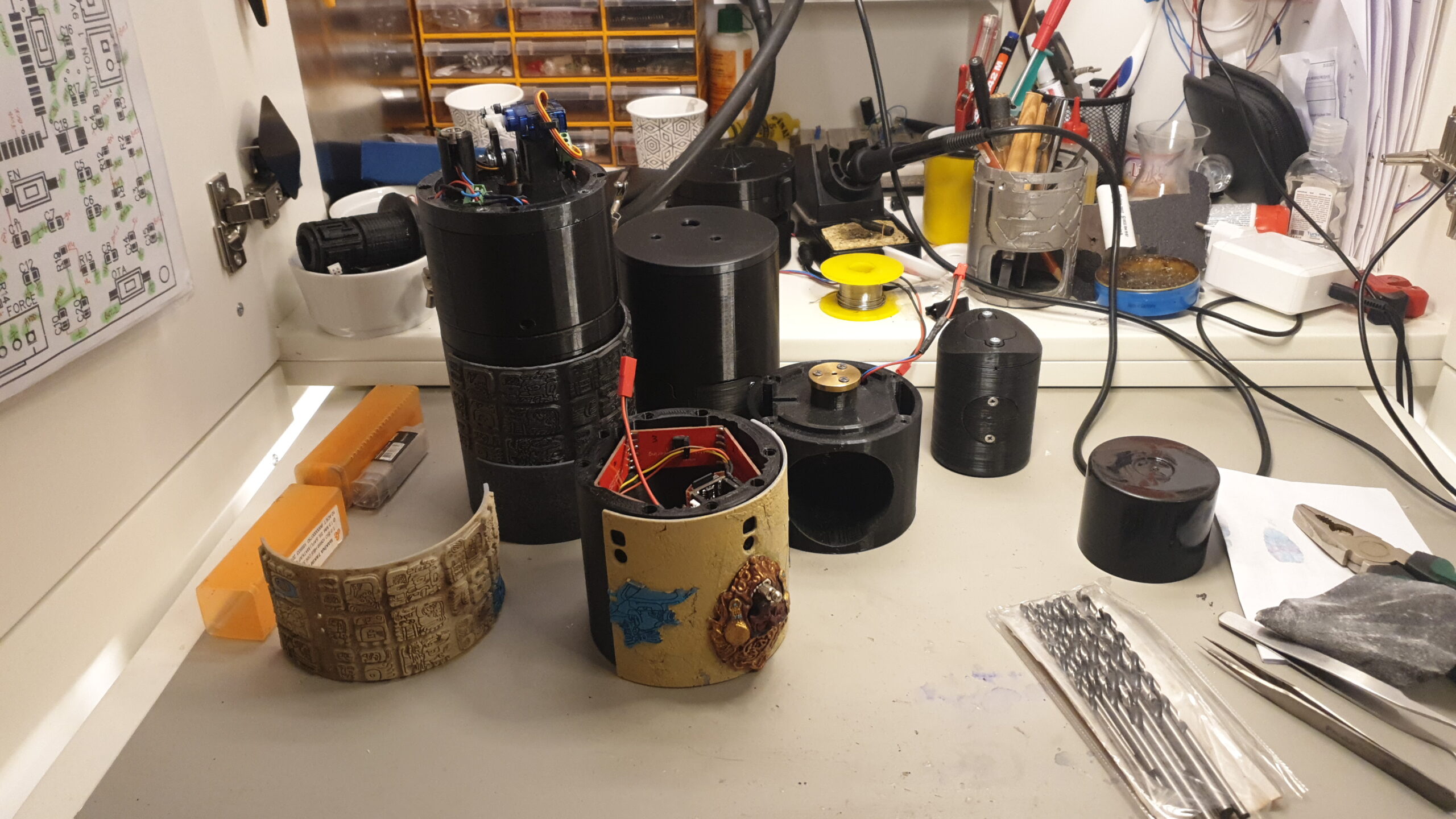

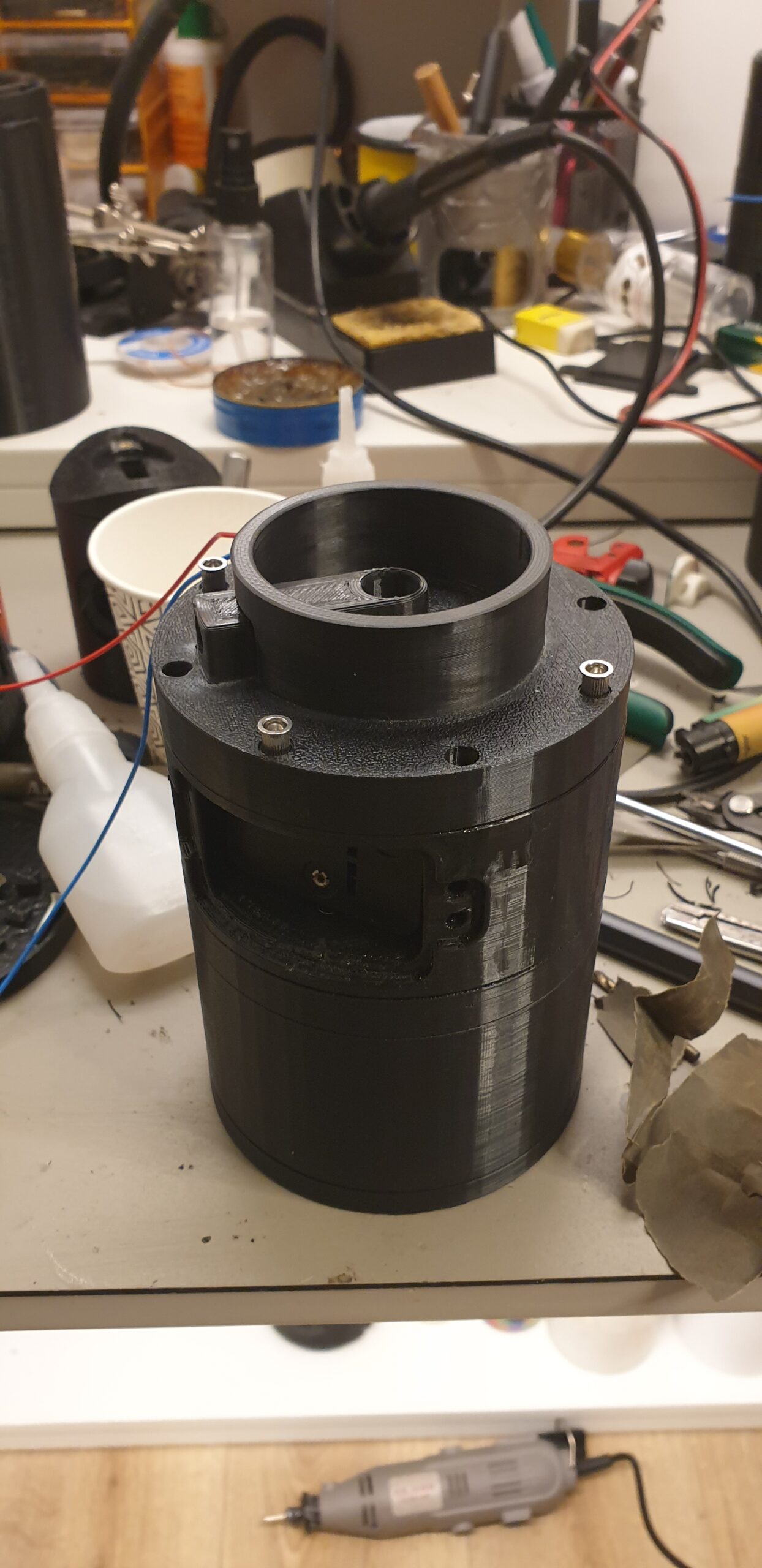

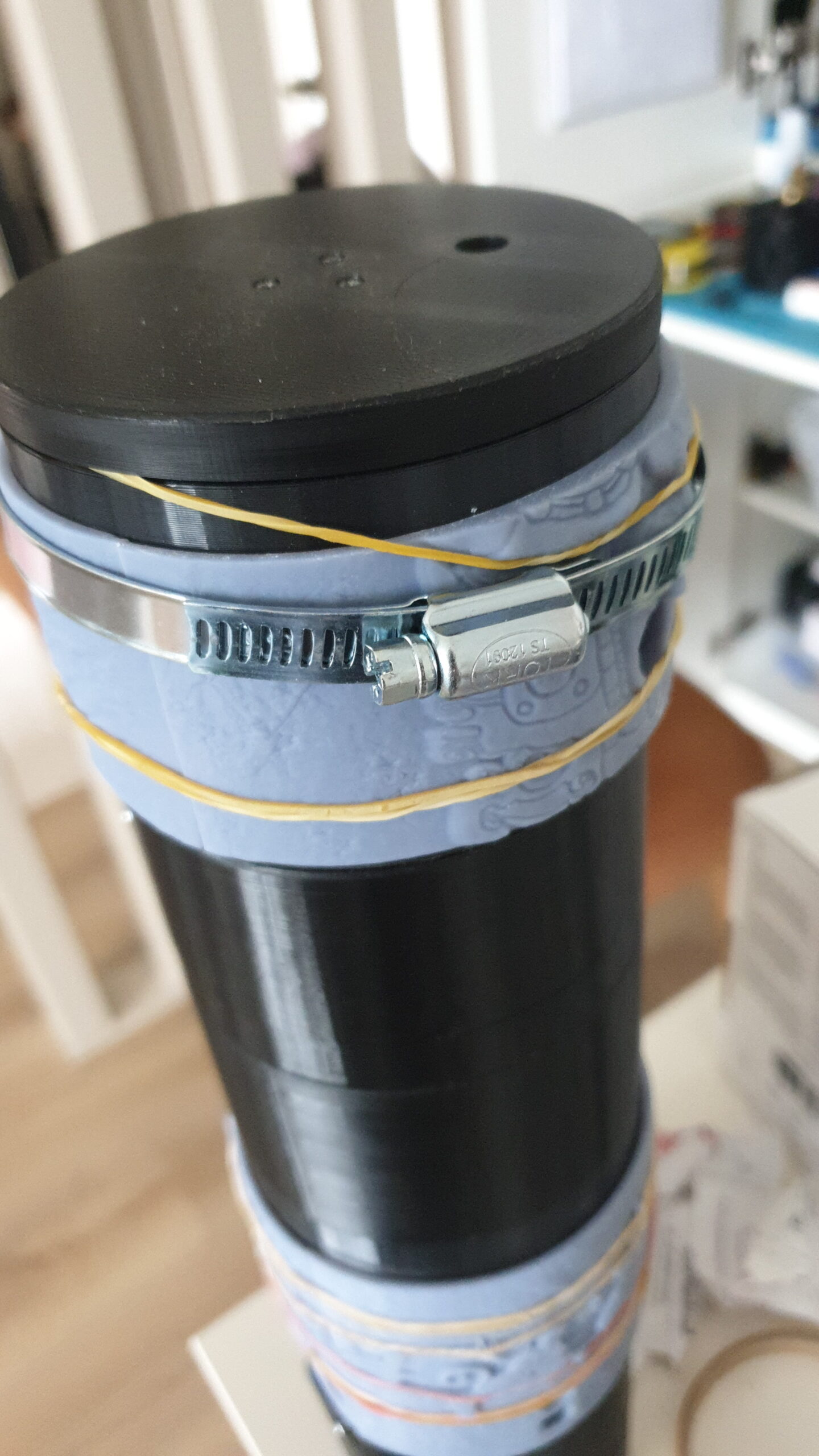

The system is built as a six-stage cylindrical mechanism, where each section unlocks the next through physically constrained interactions. Progression is strictly sequential—no stage can be bypassed—forcing the user to engage with the object's internal logic. Once completed, the system can be fully reset and solved again, reinforcing its design as a repeatable interactive experience rather than a one-time solution.

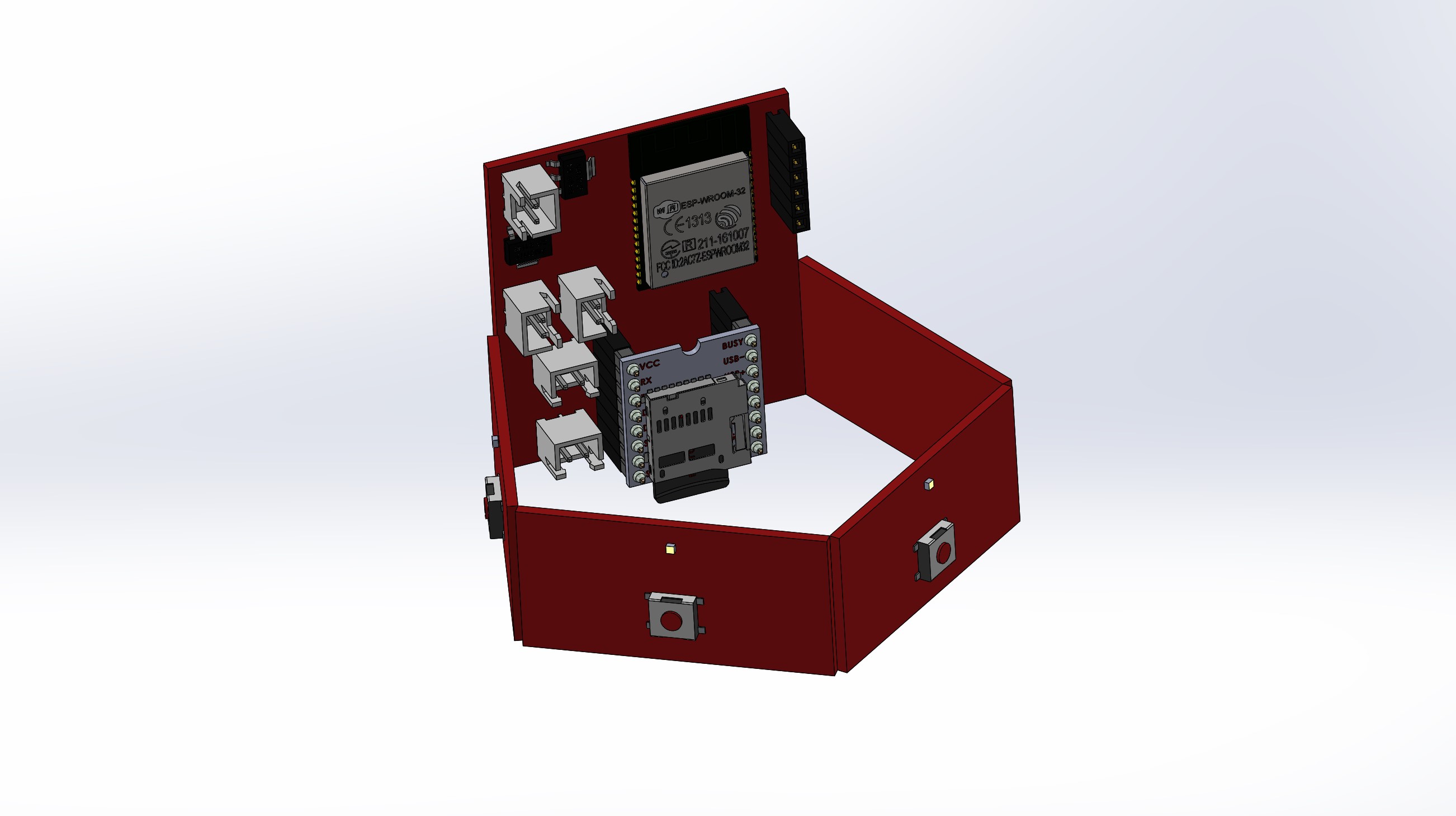

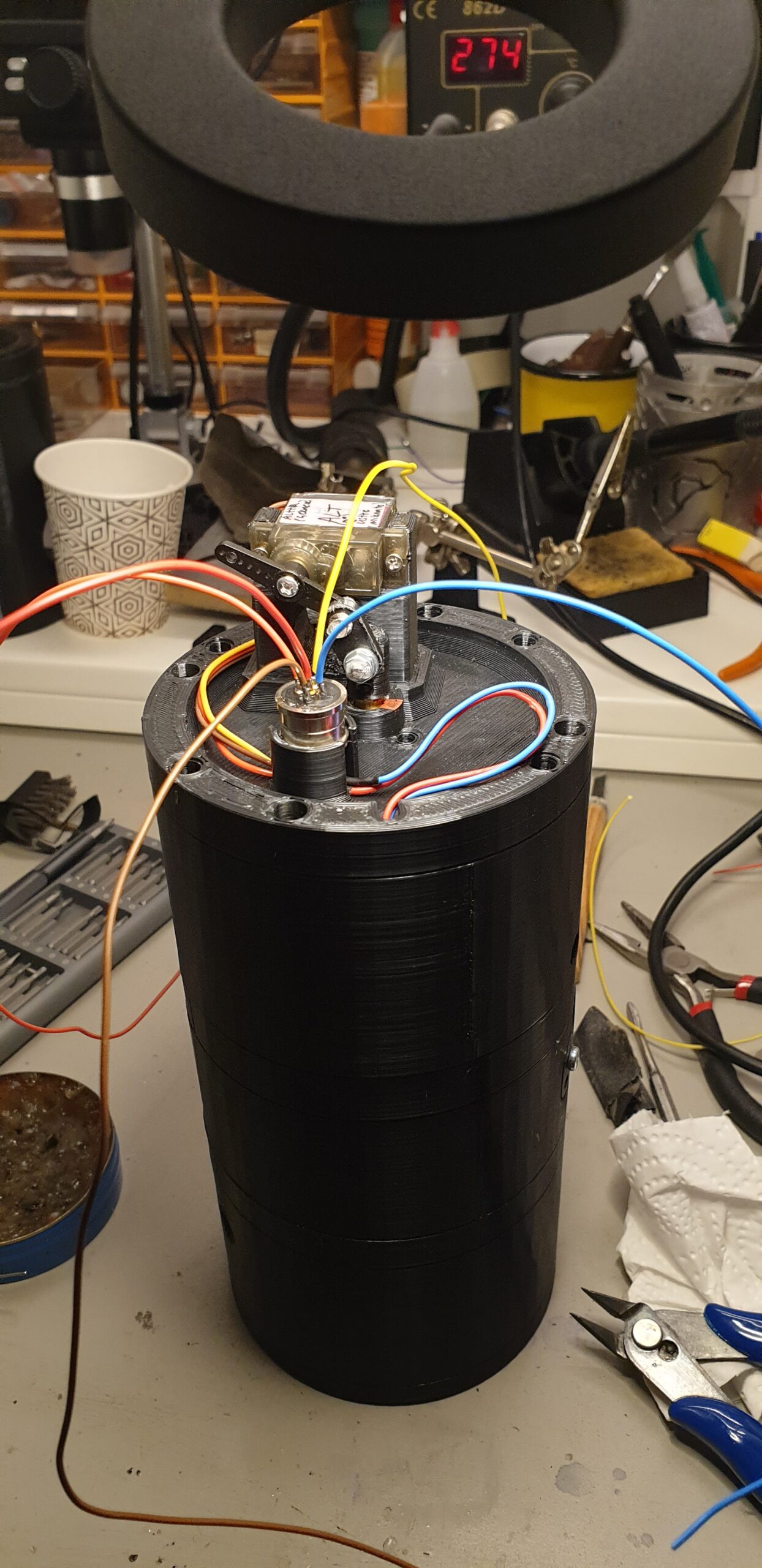

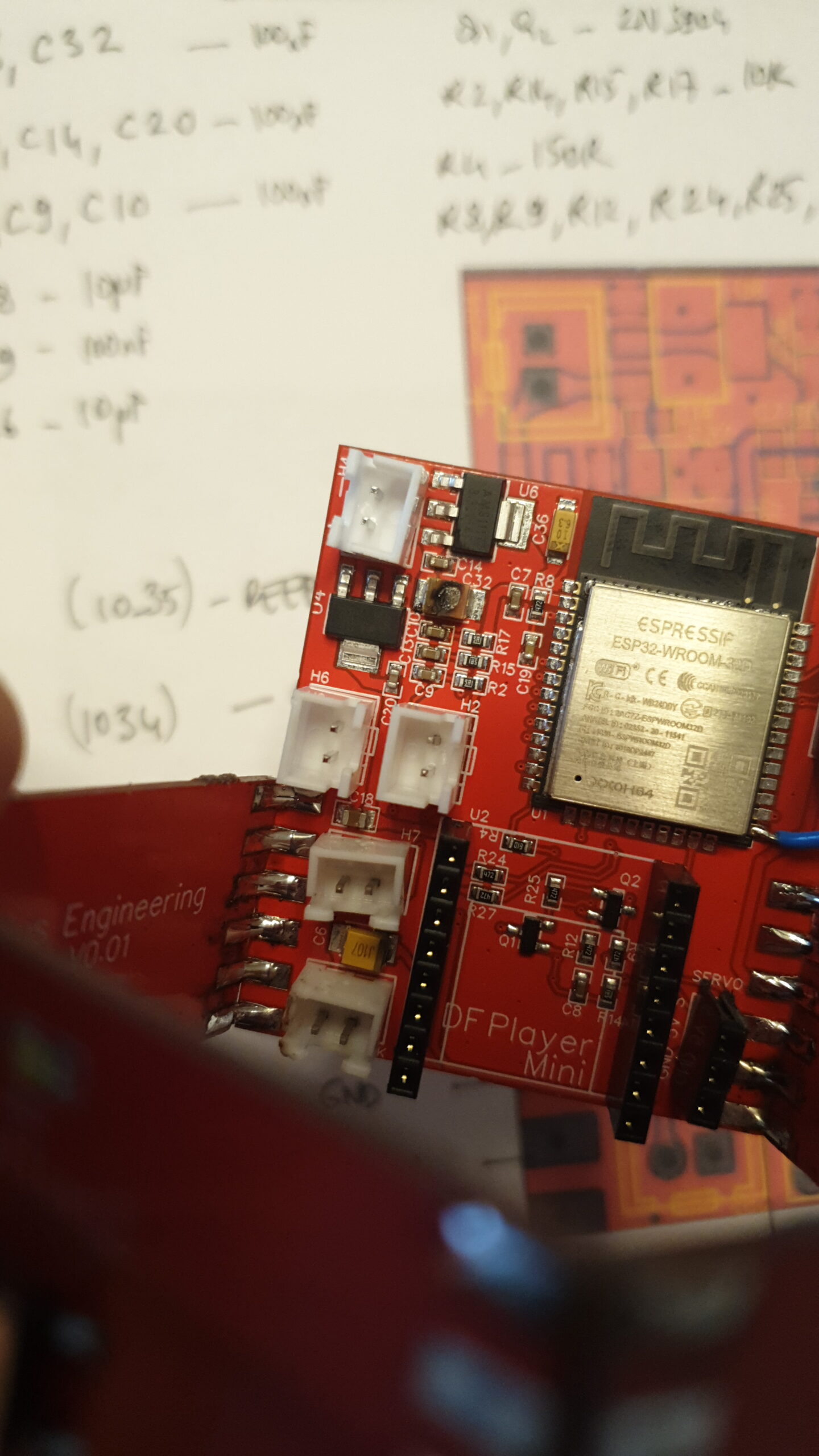

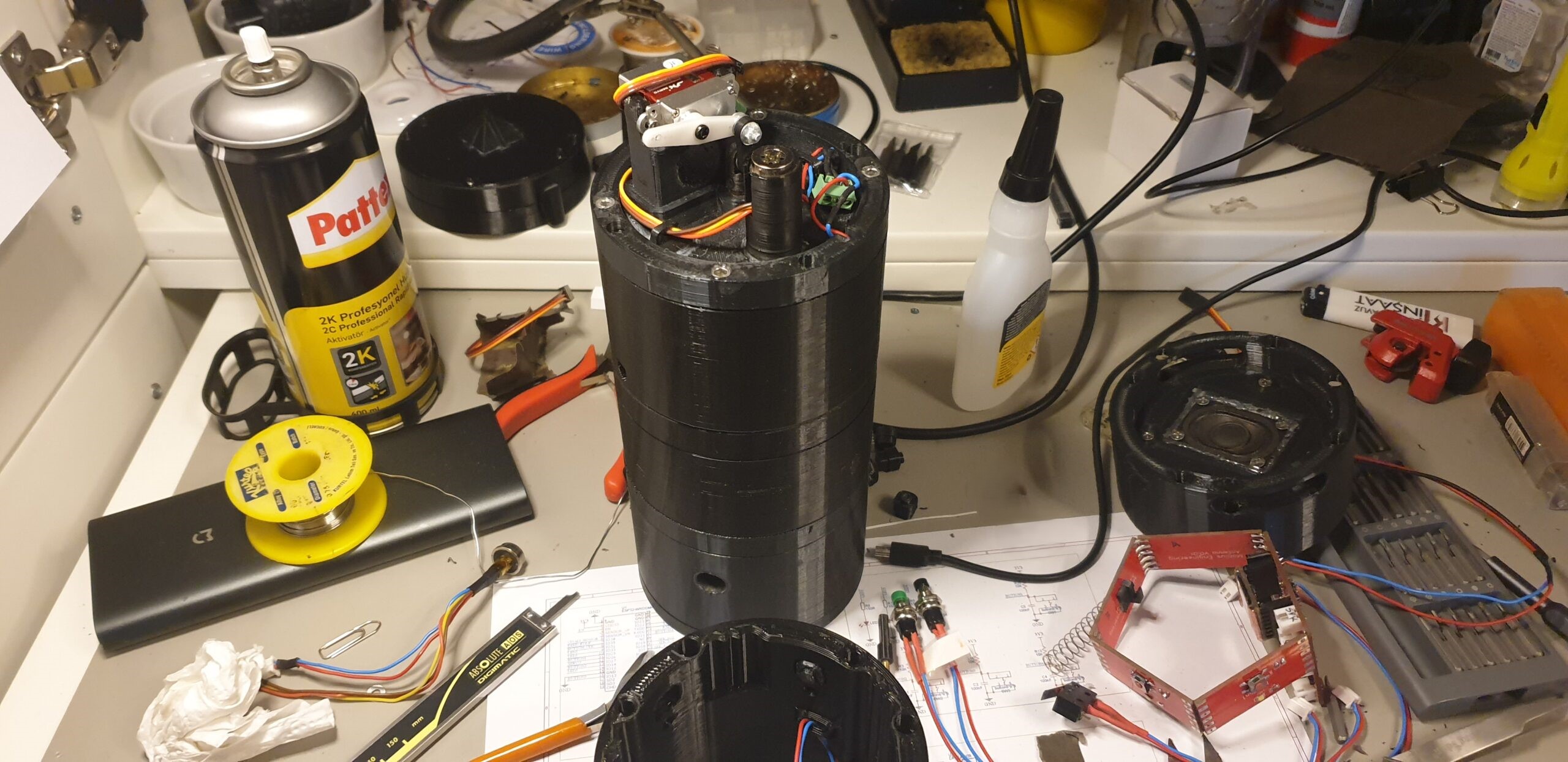

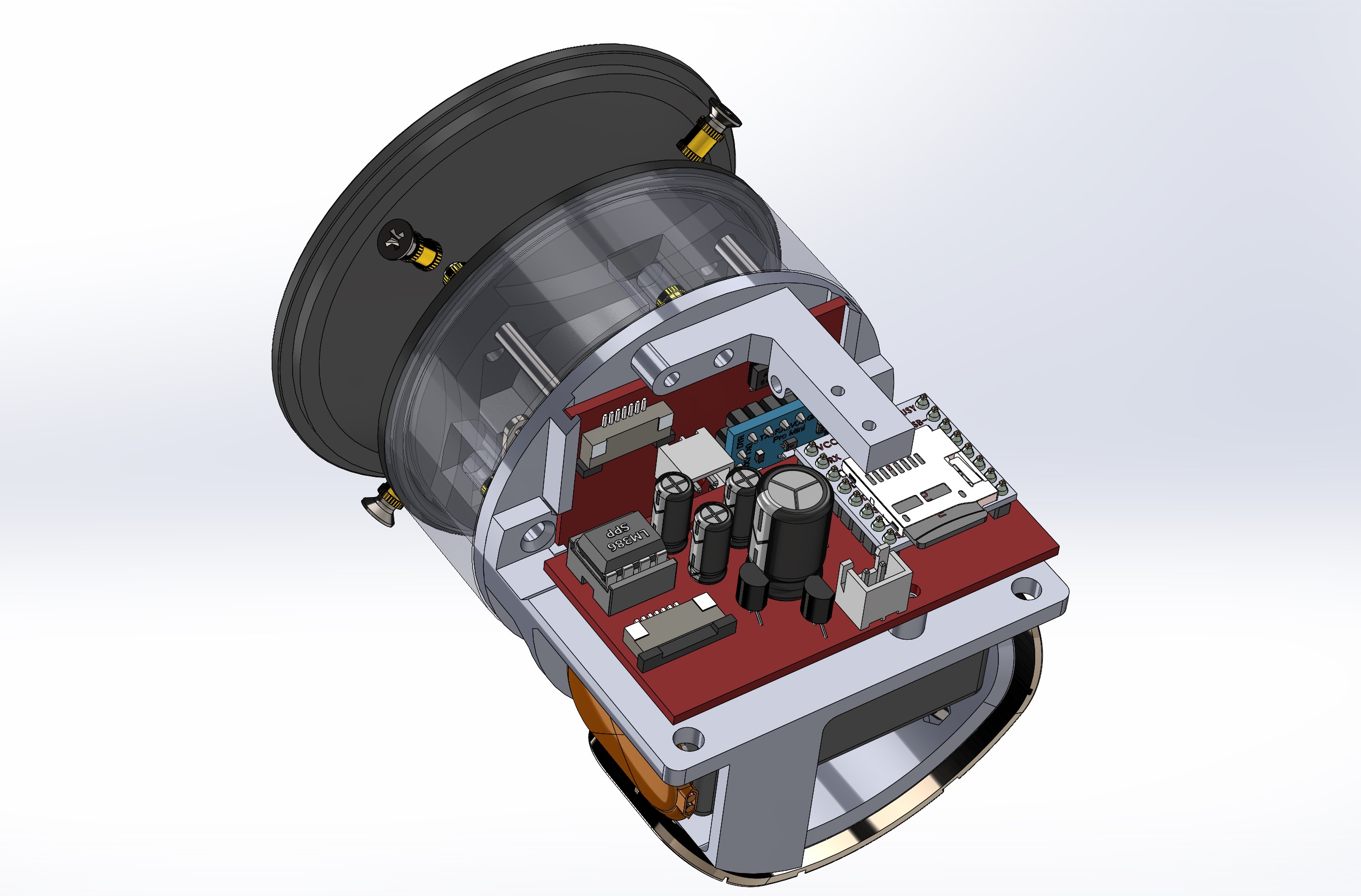

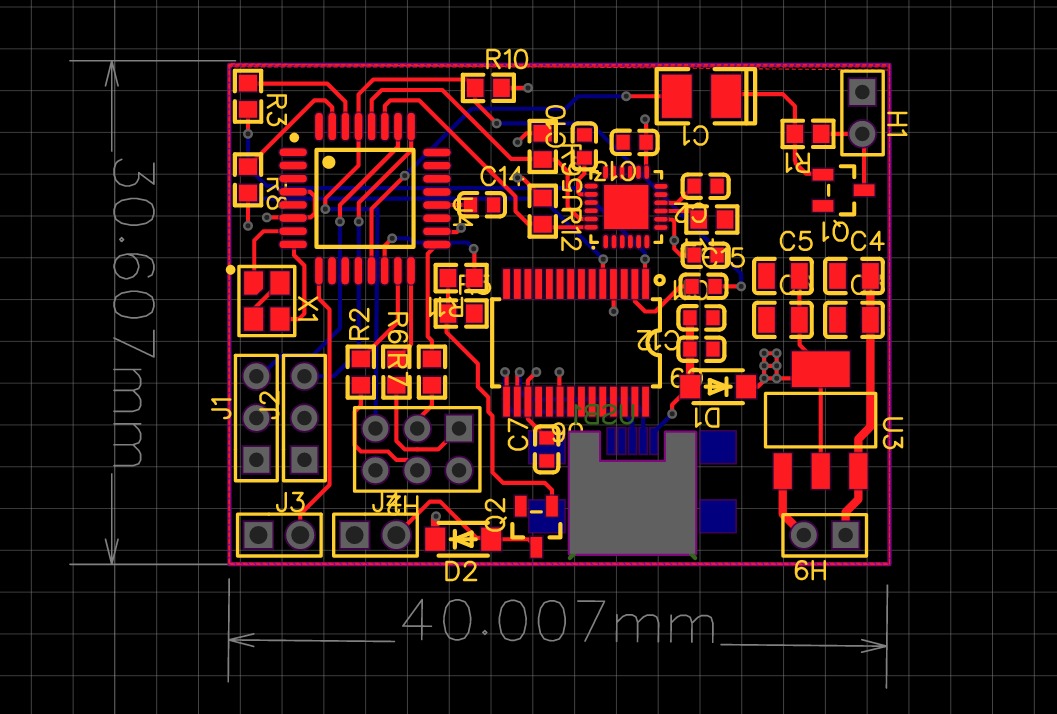

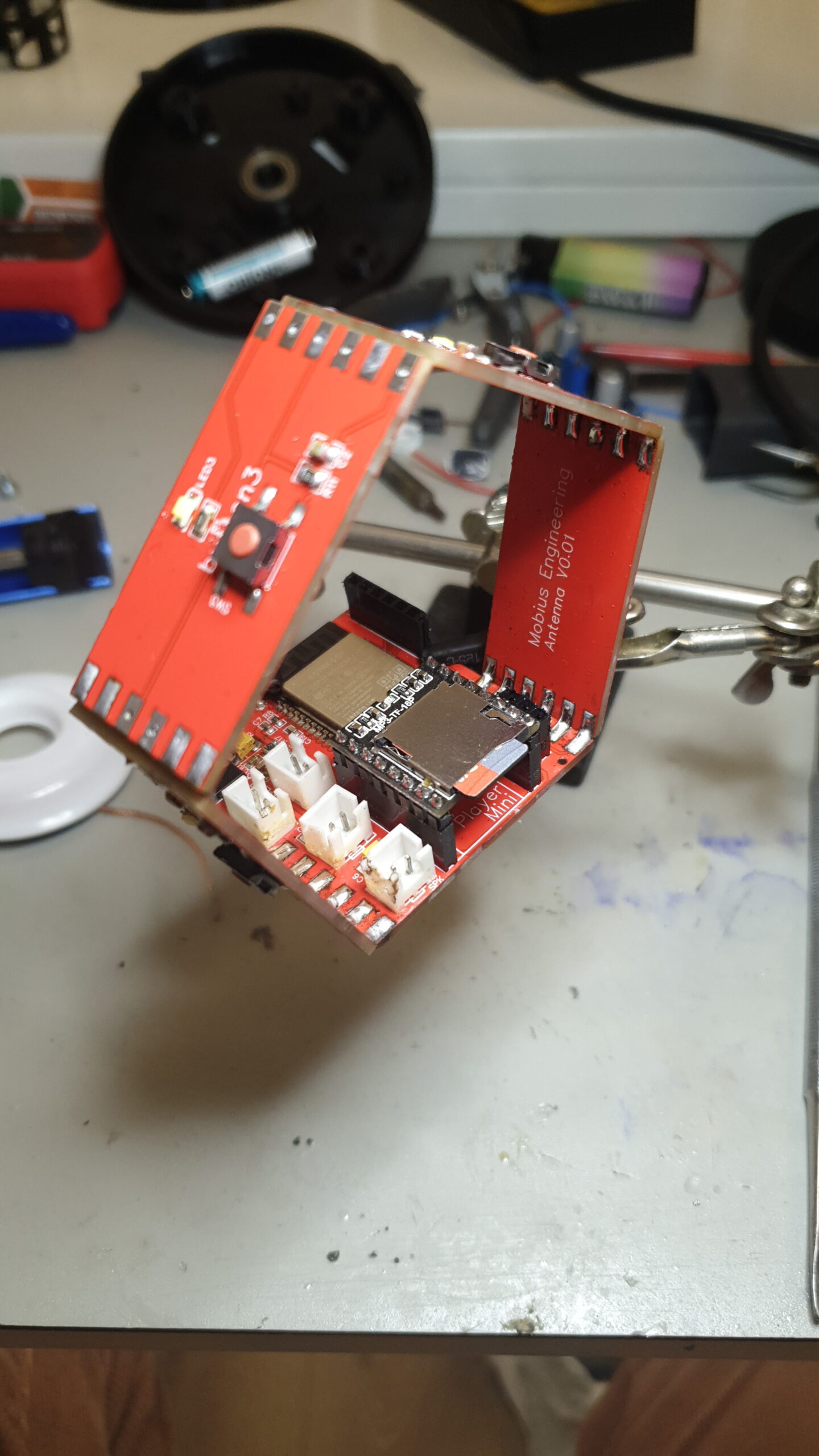

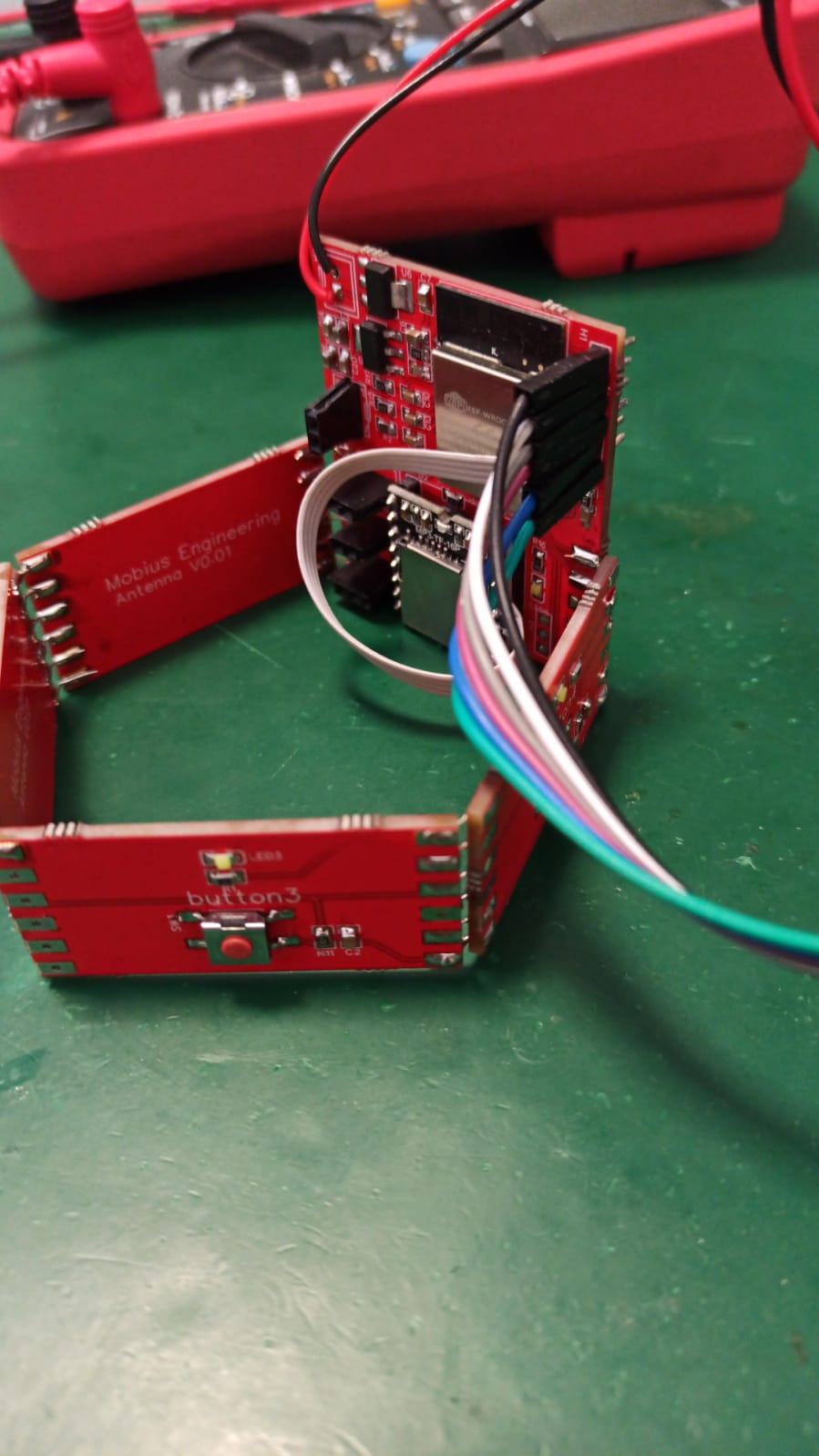

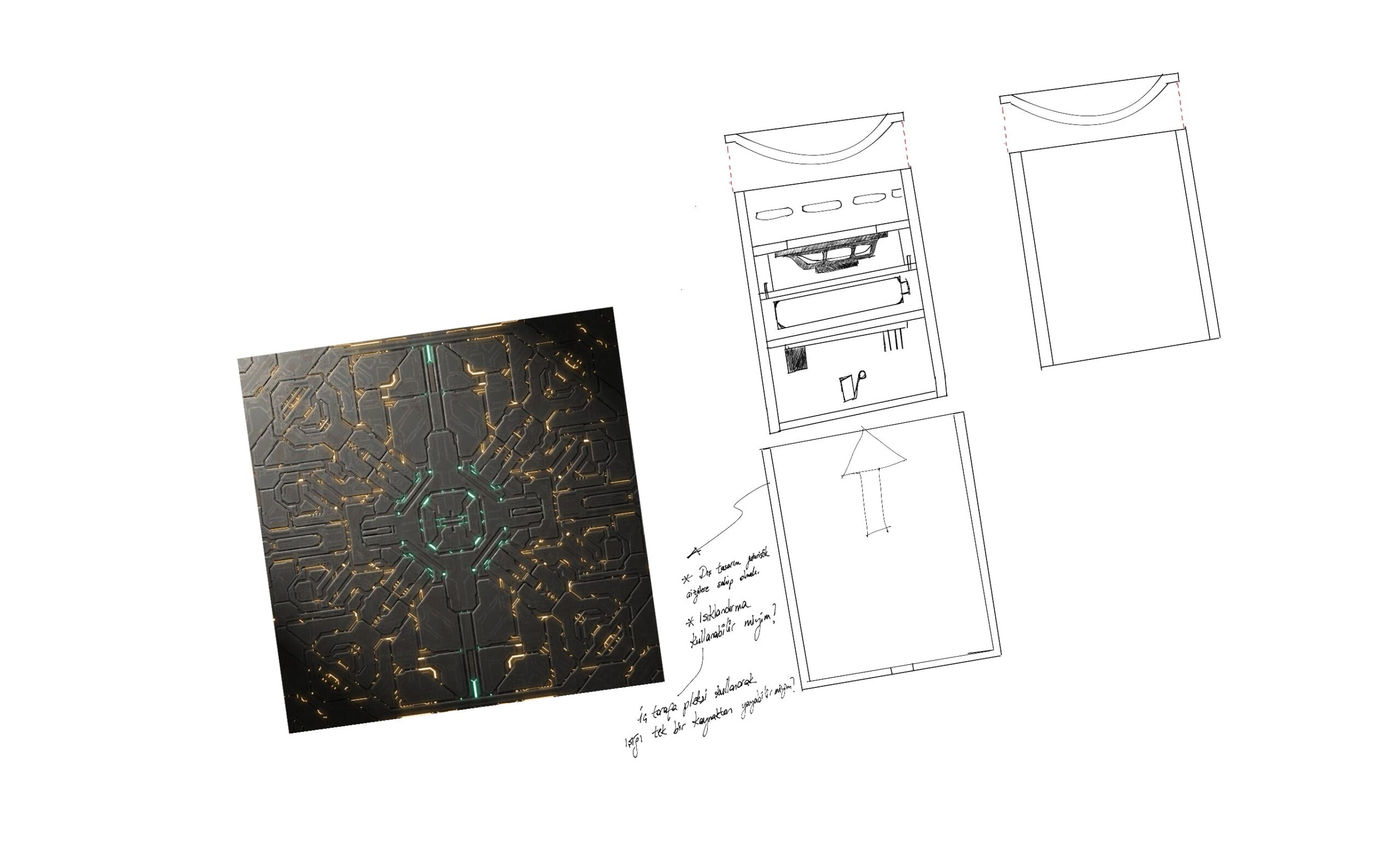

At its core, the project combines custom PCB development, compact electronic packaging, and mechanically coupled components within an extremely constrained volume. The electronics—centered around an embedded microcontroller—are tightly integrated into the mechanical flow, requiring aggressive space optimization, vertical stacking strategies, and careful coordination between physical movement and electronic response.

The interaction is deliberately designed to create tension. When specific mechanisms are triggered, the system responds with unsettling audio—distorted tones, low-frequency hums, and synthesized signals that emerge from within the object. These sounds are not decorative; they are part of the interaction logic, reinforcing the sense that the user is activating something unknown. The experience is intentionally uncomfortable, pushing the object beyond a puzzle into a psychological, immersive system.

One of the defining aspects of the system is its layered interaction design. Upon solving the primary structure, the object reveals a secondary embedded system—effectively "a puzzle within the puzzle." This final stage shifts the experience from an archaeological artifact to a futuristic device. Once activated through a hidden interaction, the system produces synthesized waveforms and modulation patterns. The user discovers that these signals can be manipulated through spatial orientation, using motion sensing to control frequency and modulation. At a specific orientation, the signal stabilizes into periodic pulses, evoking the behavior of a long-range communication device—suggesting the activation of an interstellar transmitter.

The project is deeply rooted in narrative design. It is delivered with a multi-page fictional research letter that frames the object as an unearthed artifact discovered in a Mayan temple, potentially linked to extraterrestrial contact. The narrative draws from real historical uncertainties surrounding the sudden collapse of the Mayan civilization, blending them with speculative fiction. This context transforms the interaction into an investigative experience rather than a purely mechanical challenge.

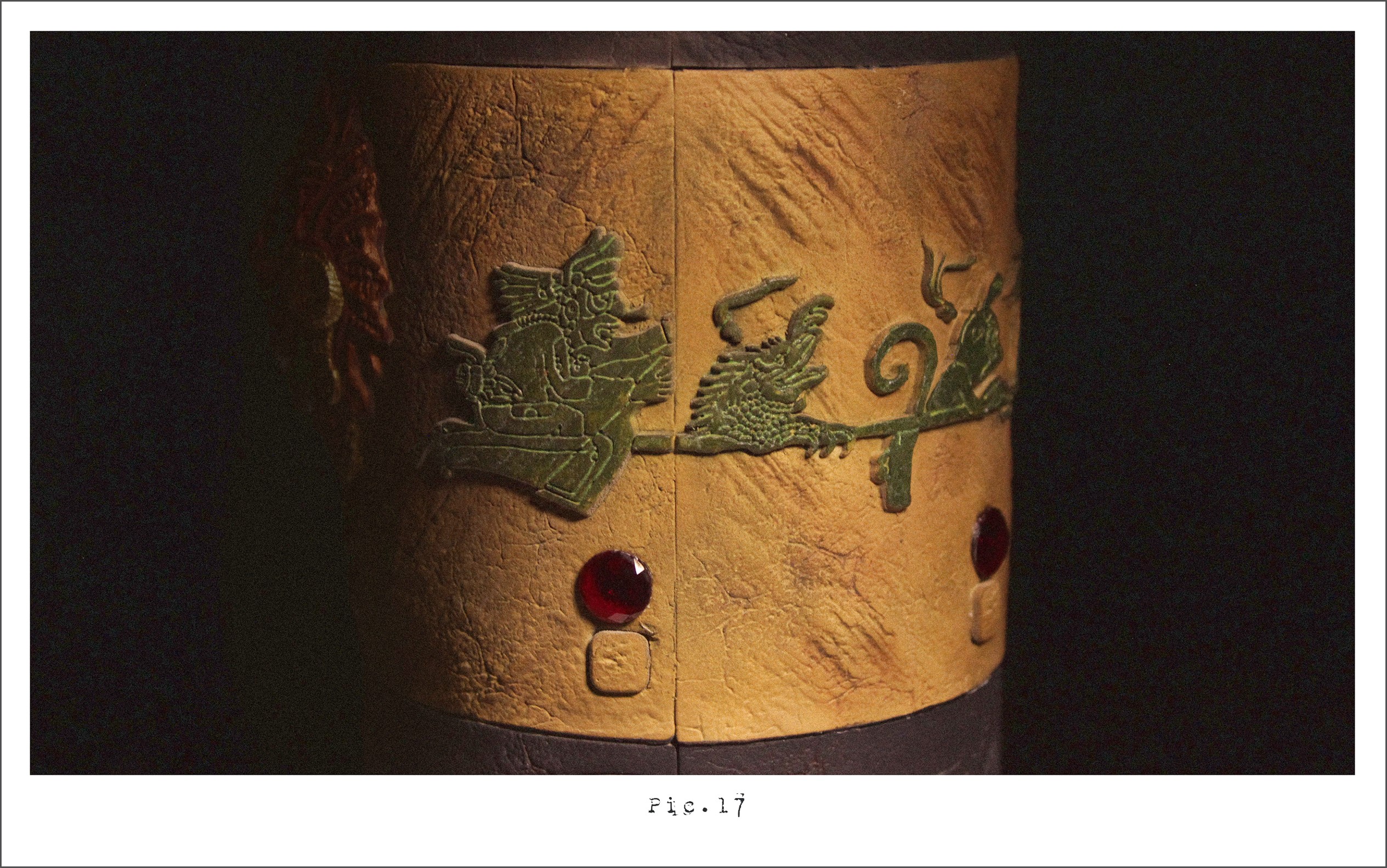

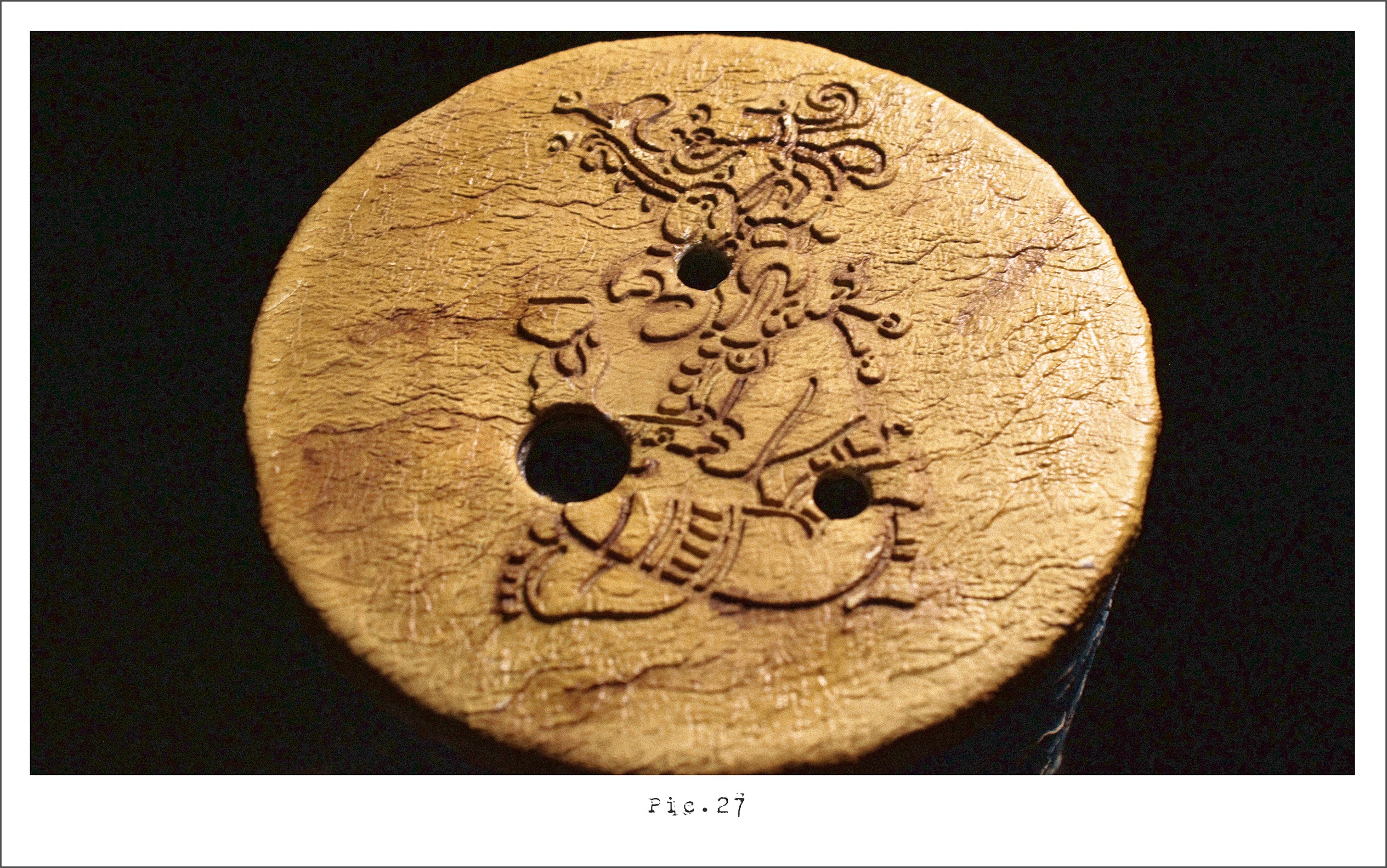

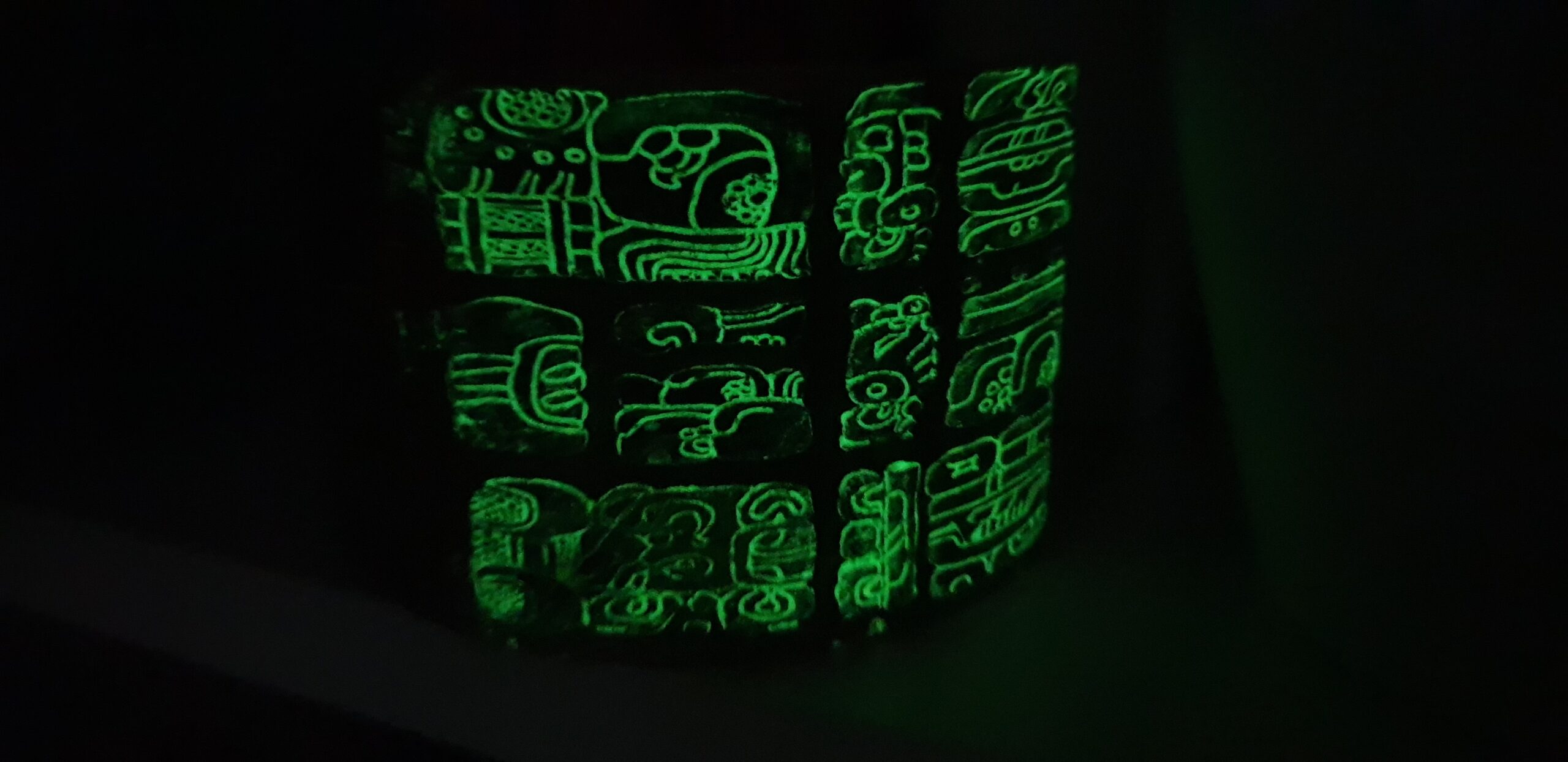

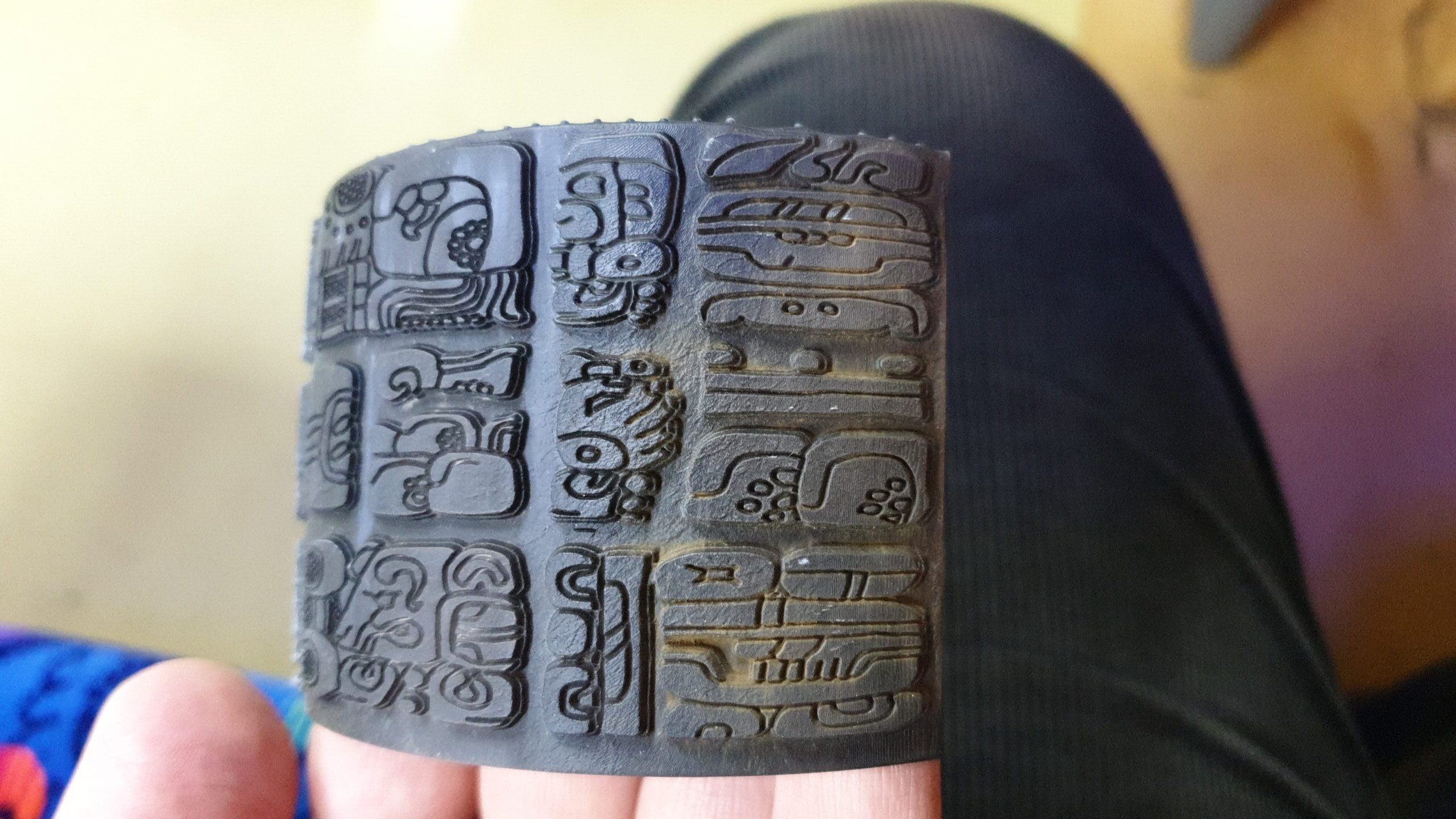

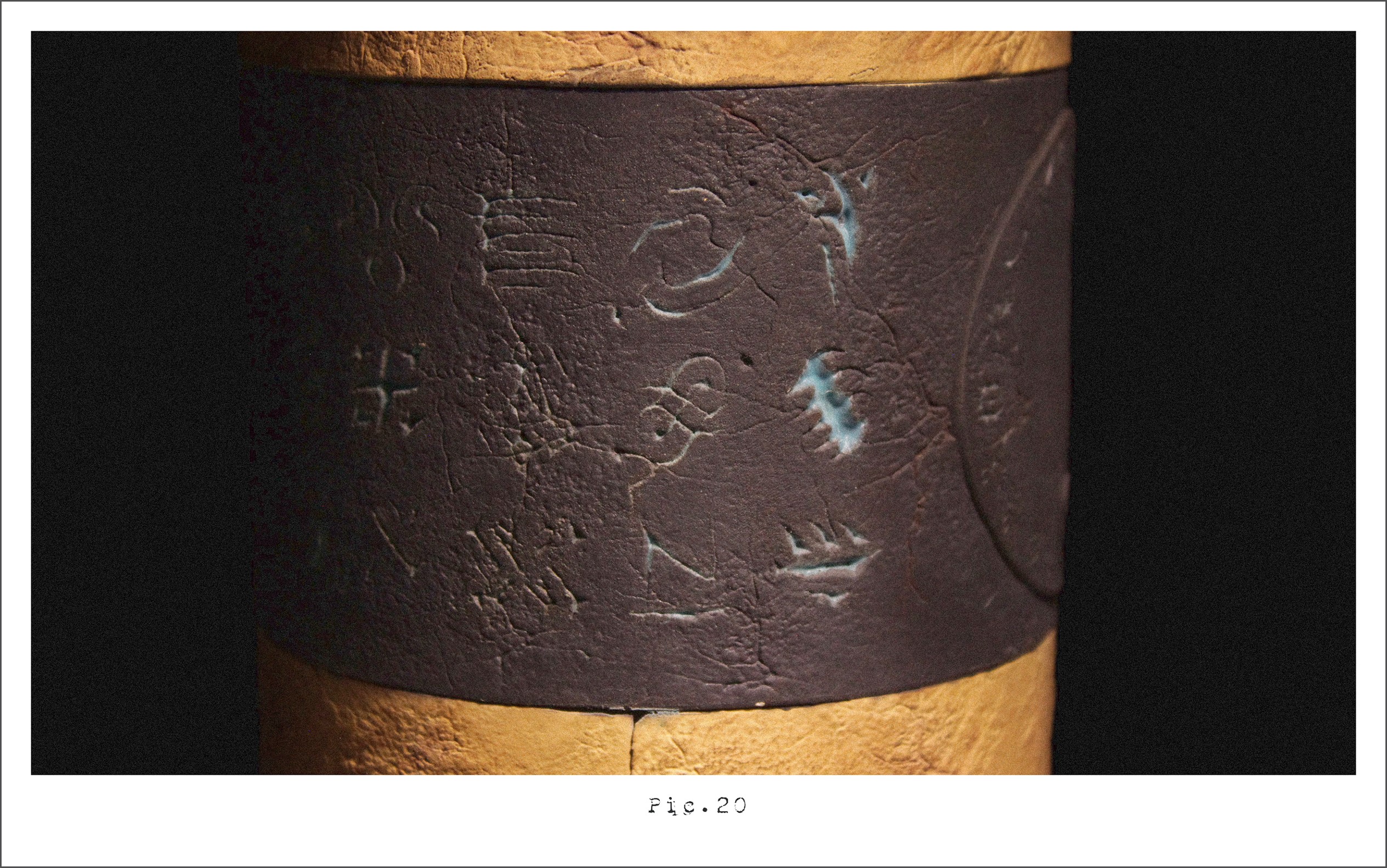

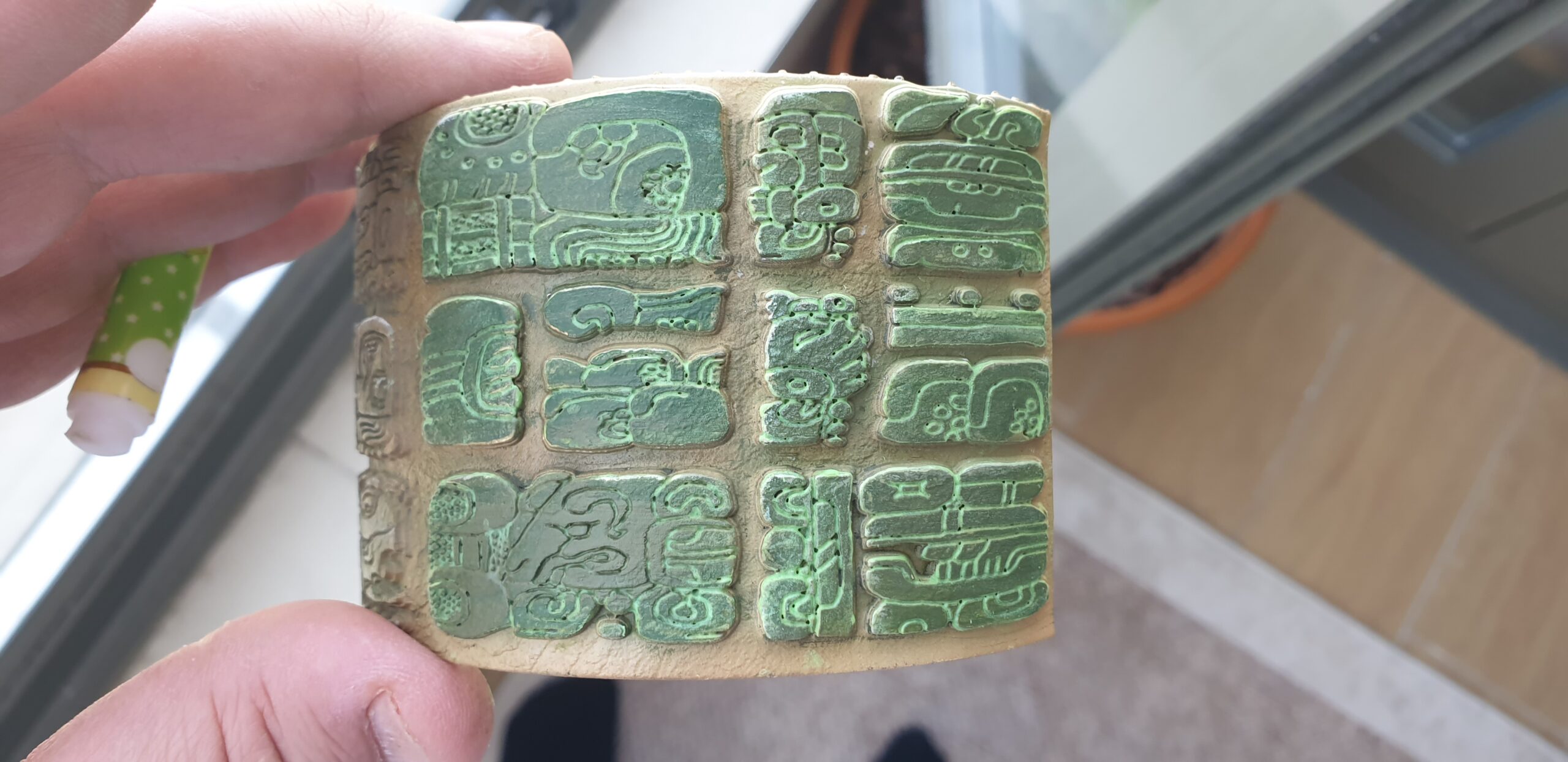

Early in development, significant effort was dedicated to studying Mayan glyphs and attempting to construct a symbolic language that users would need to interpret in order to solve the system. While generating a fully functional extension of the language proved impractical due to its inherent complexity, authentic Mayan glyphs, creation narratives, and cosmological references were directly embedded into the design. These elements subtly guide the user through symbolism rather than explicit instruction, reinforcing the artifact's narrative authenticity.

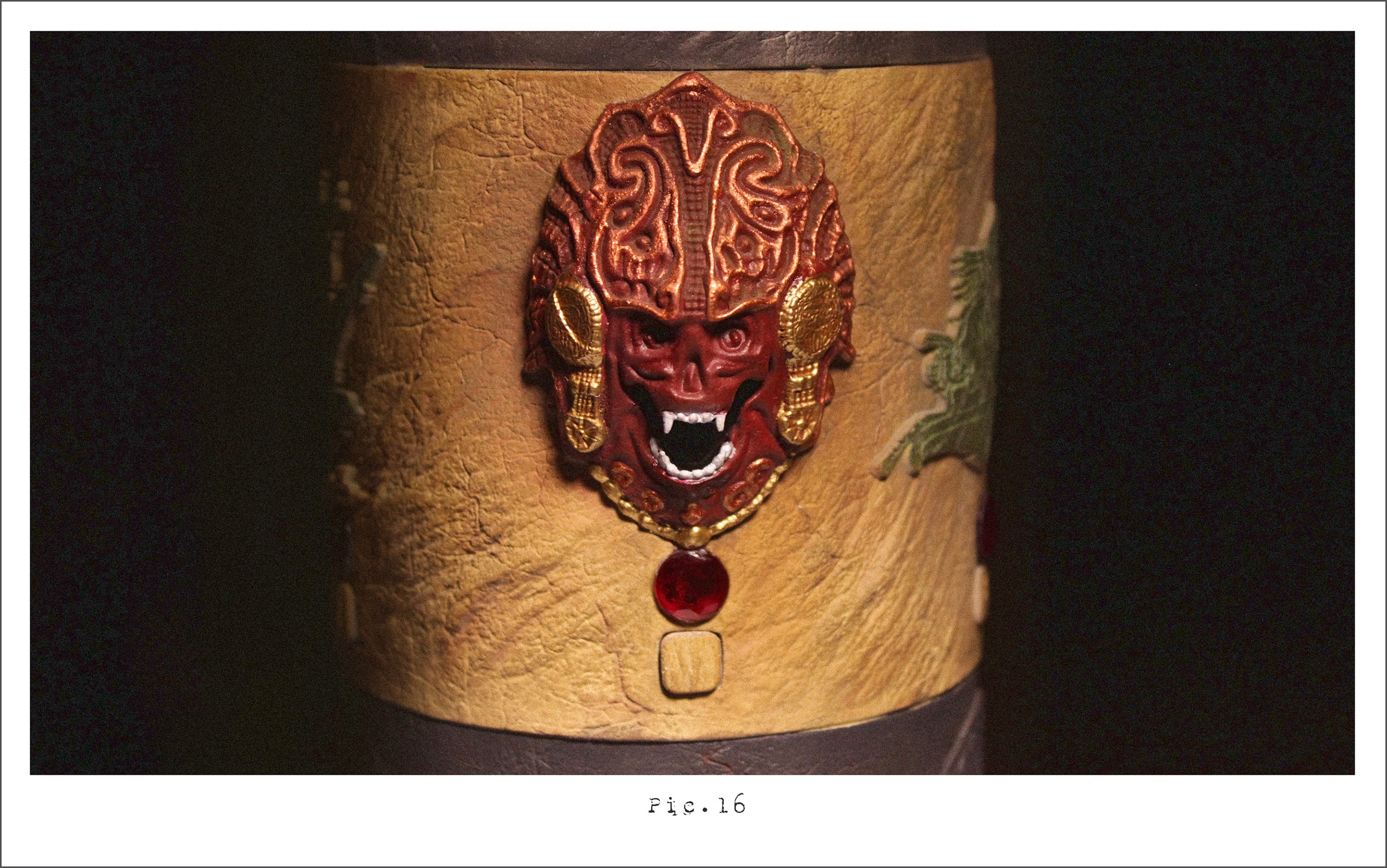

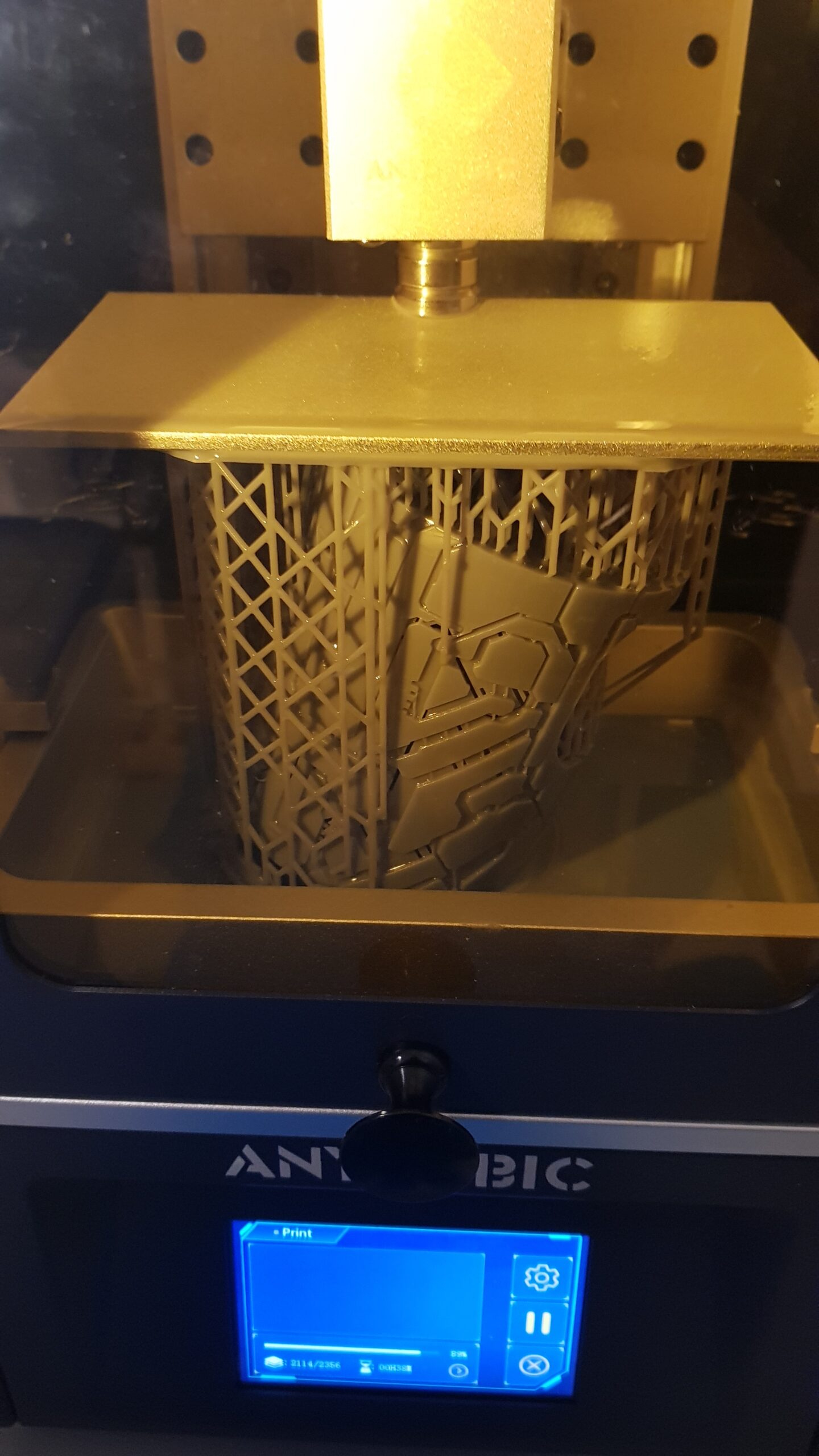

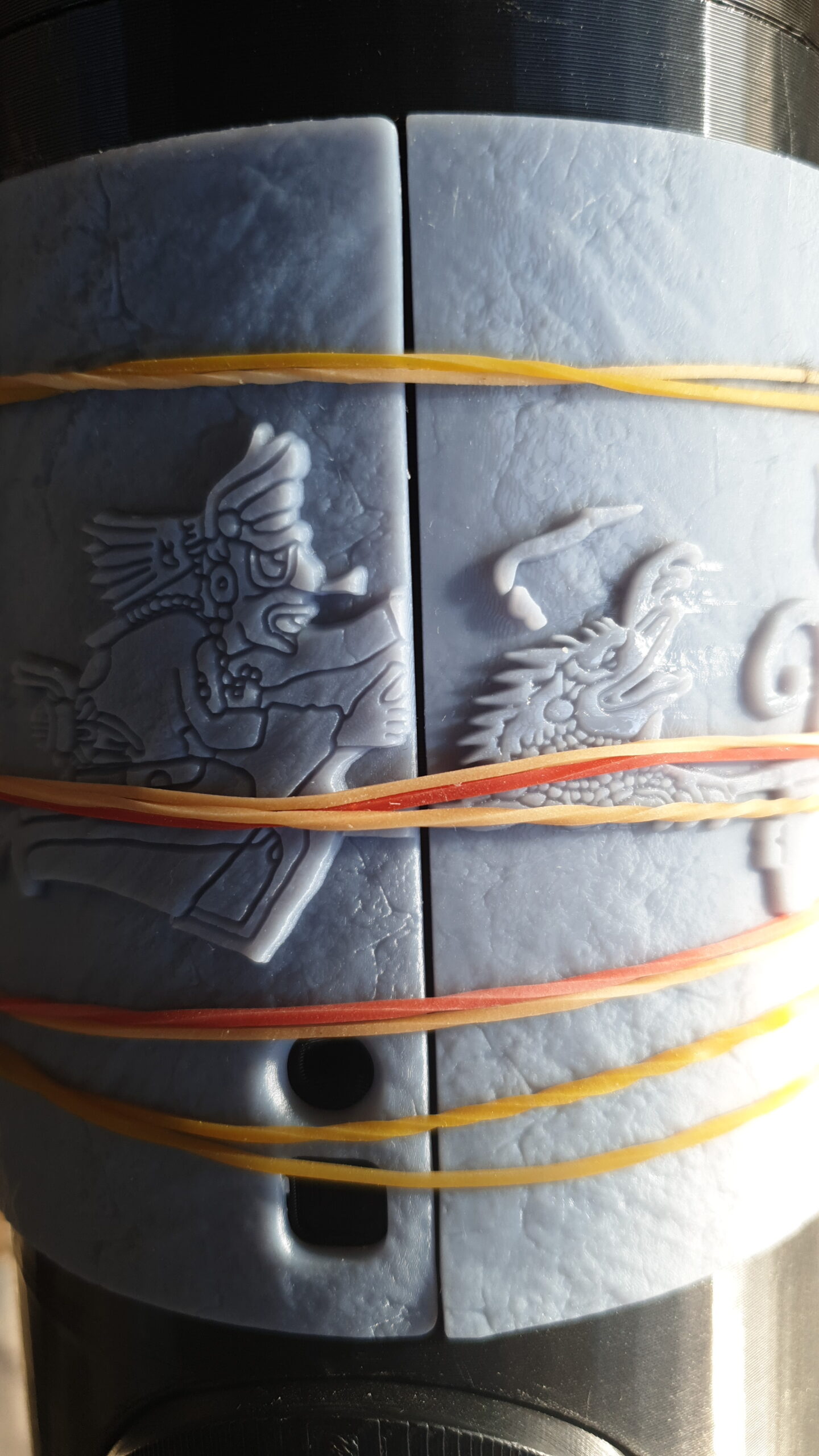

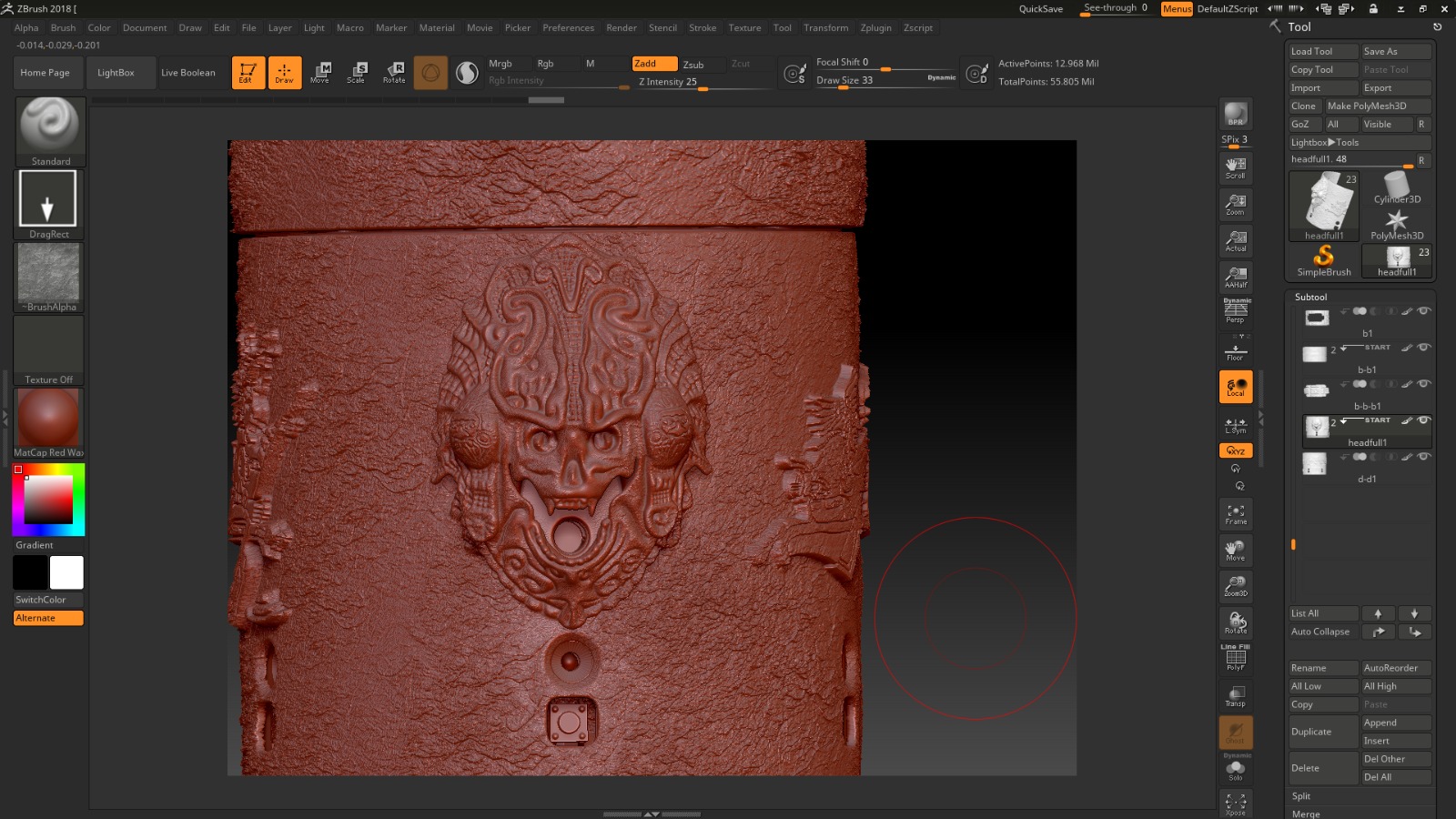

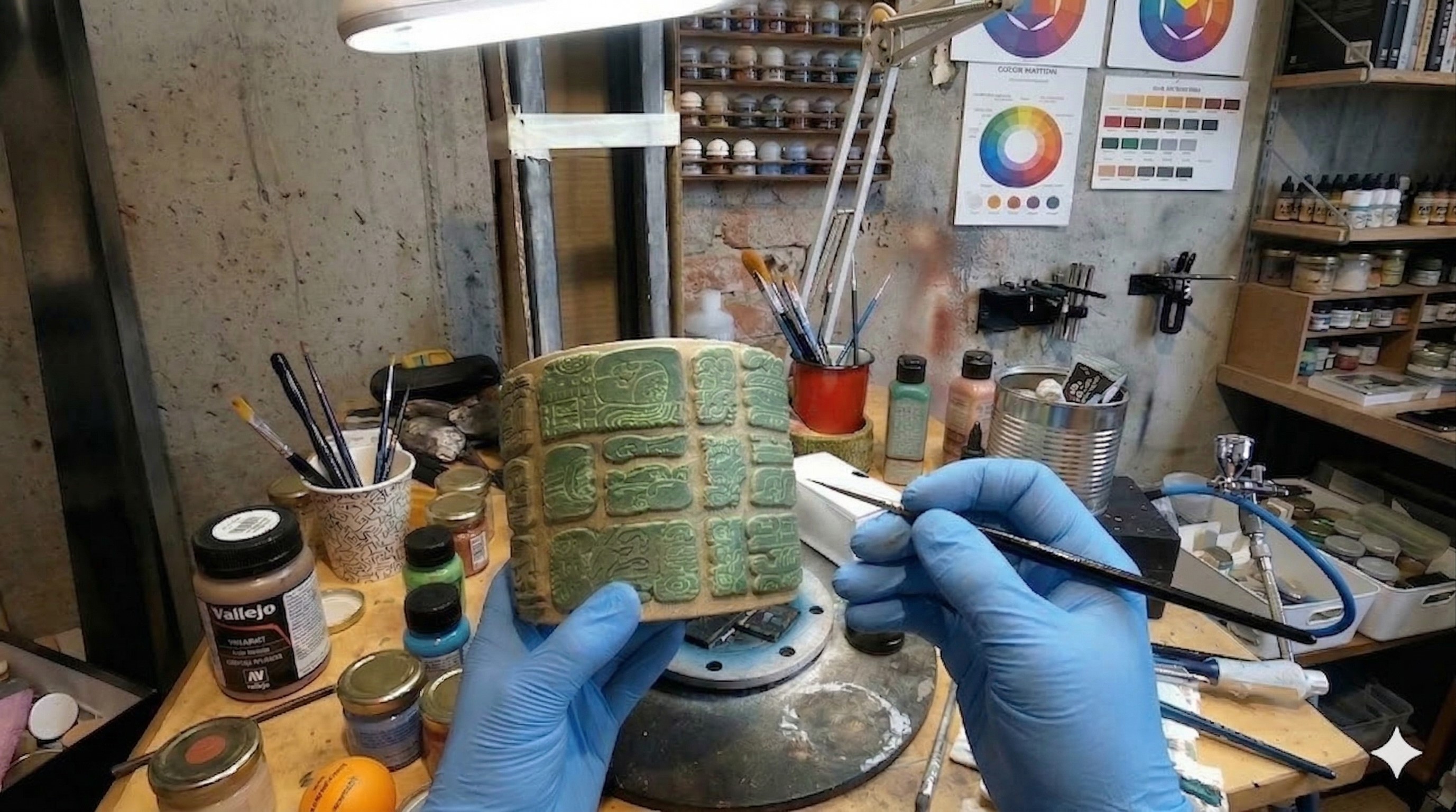

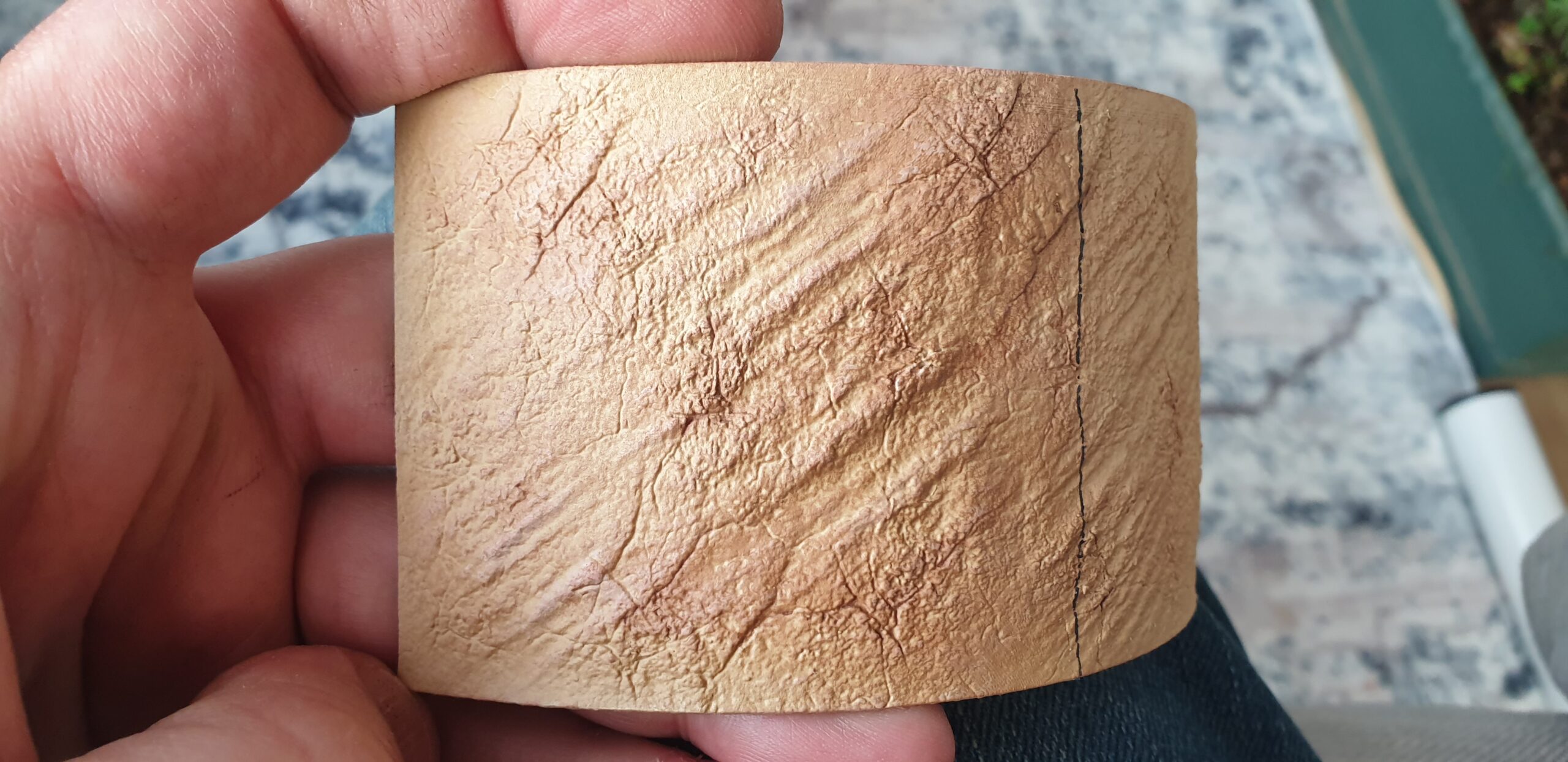

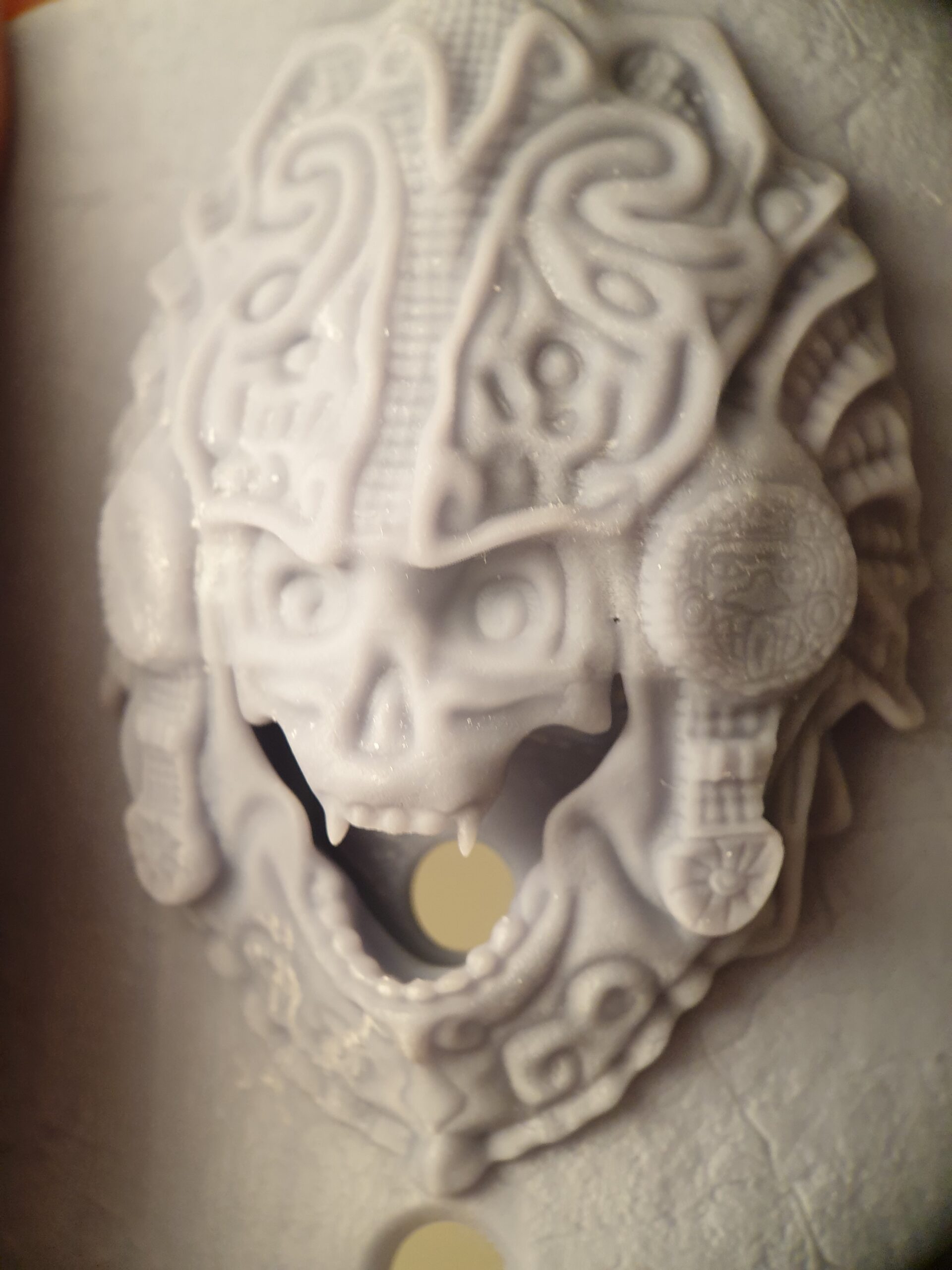

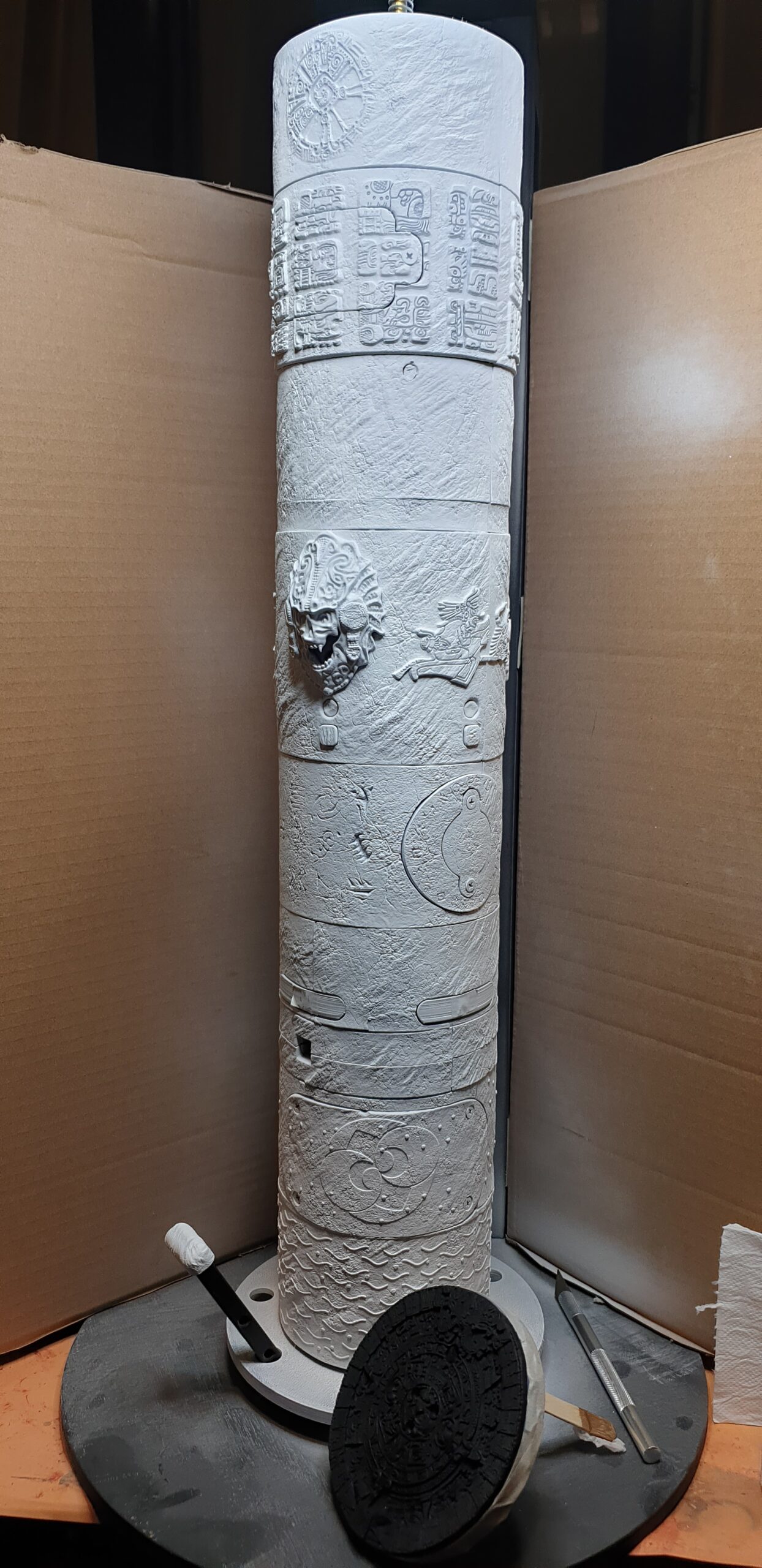

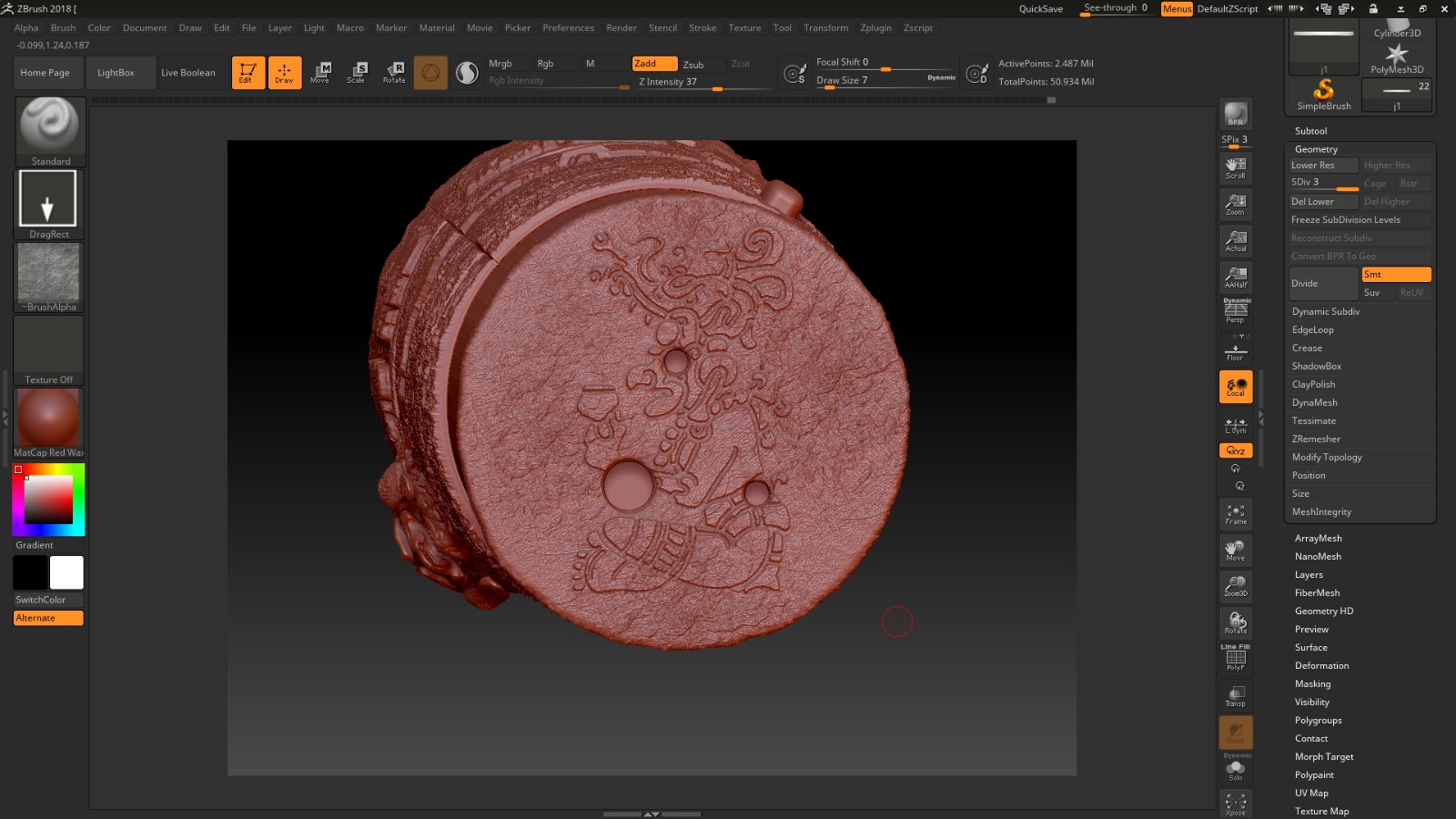

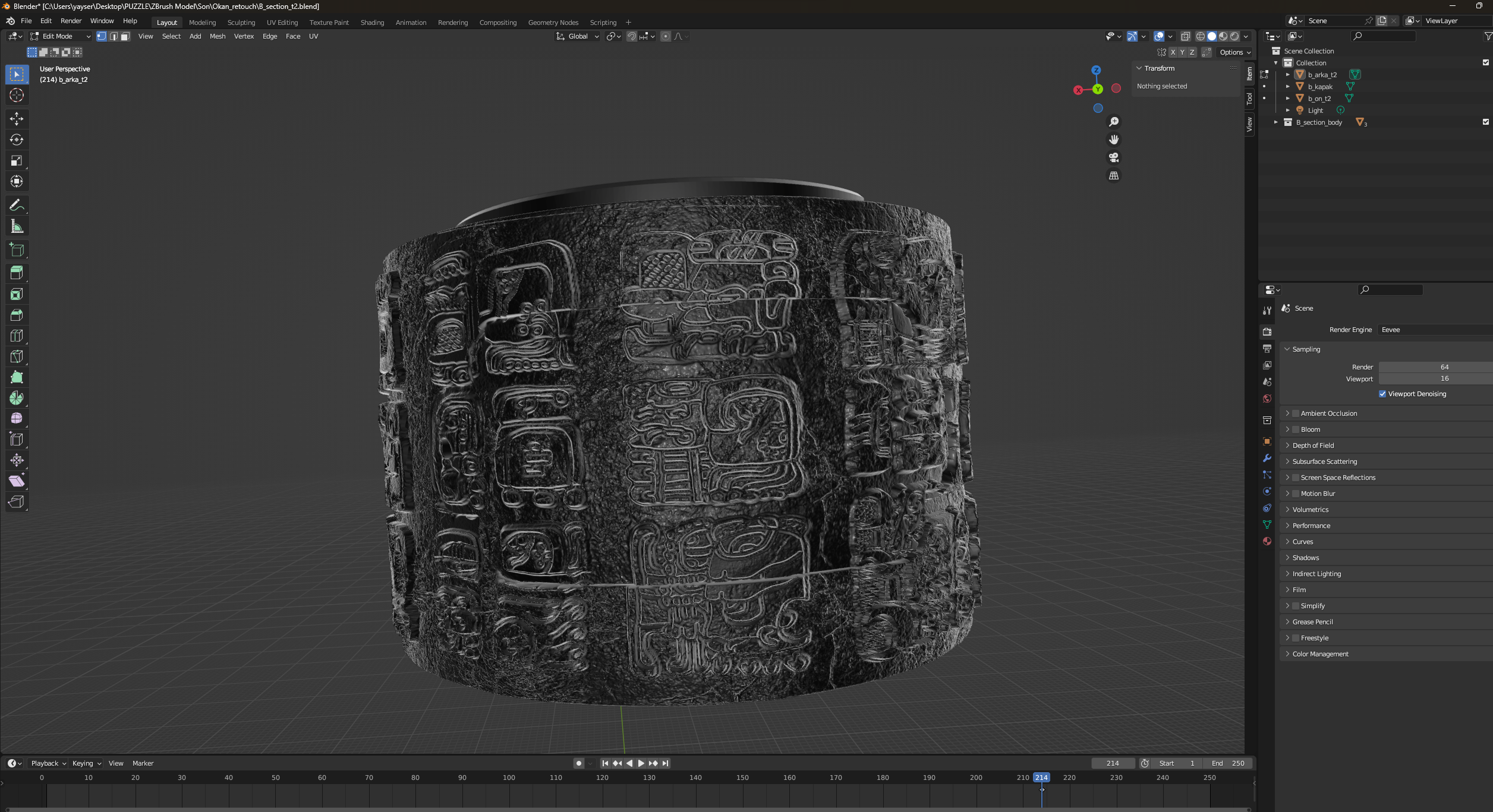

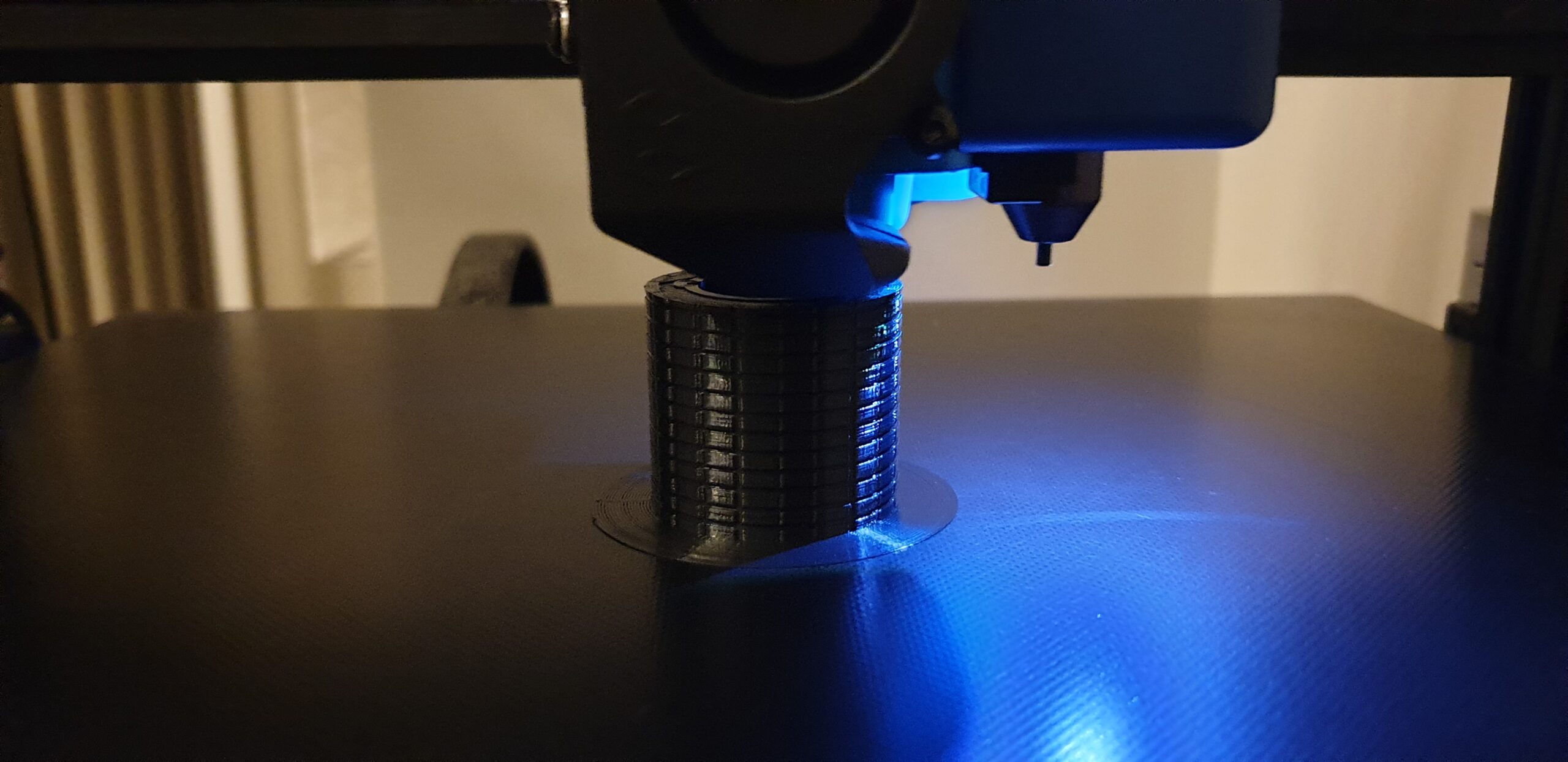

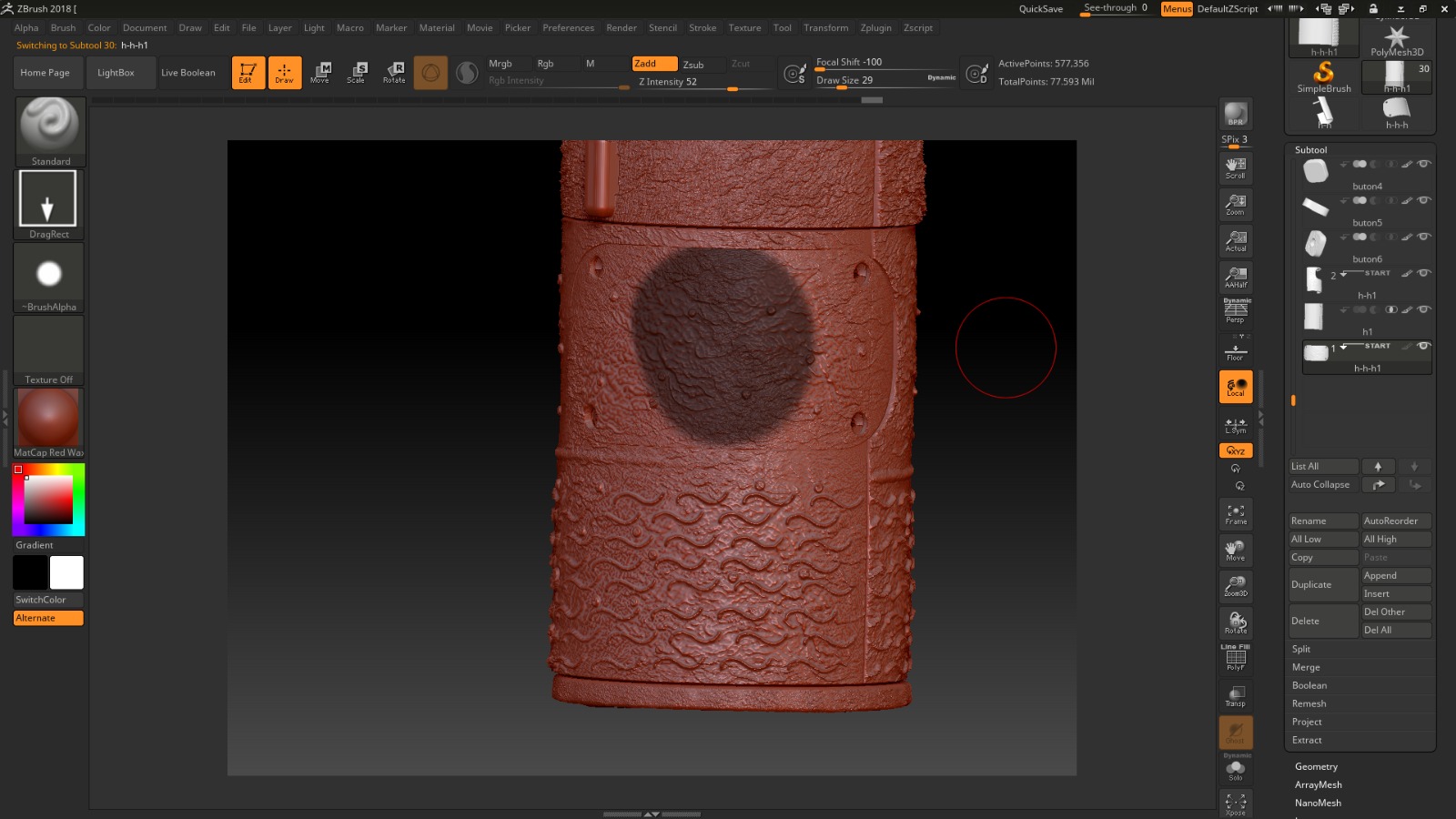

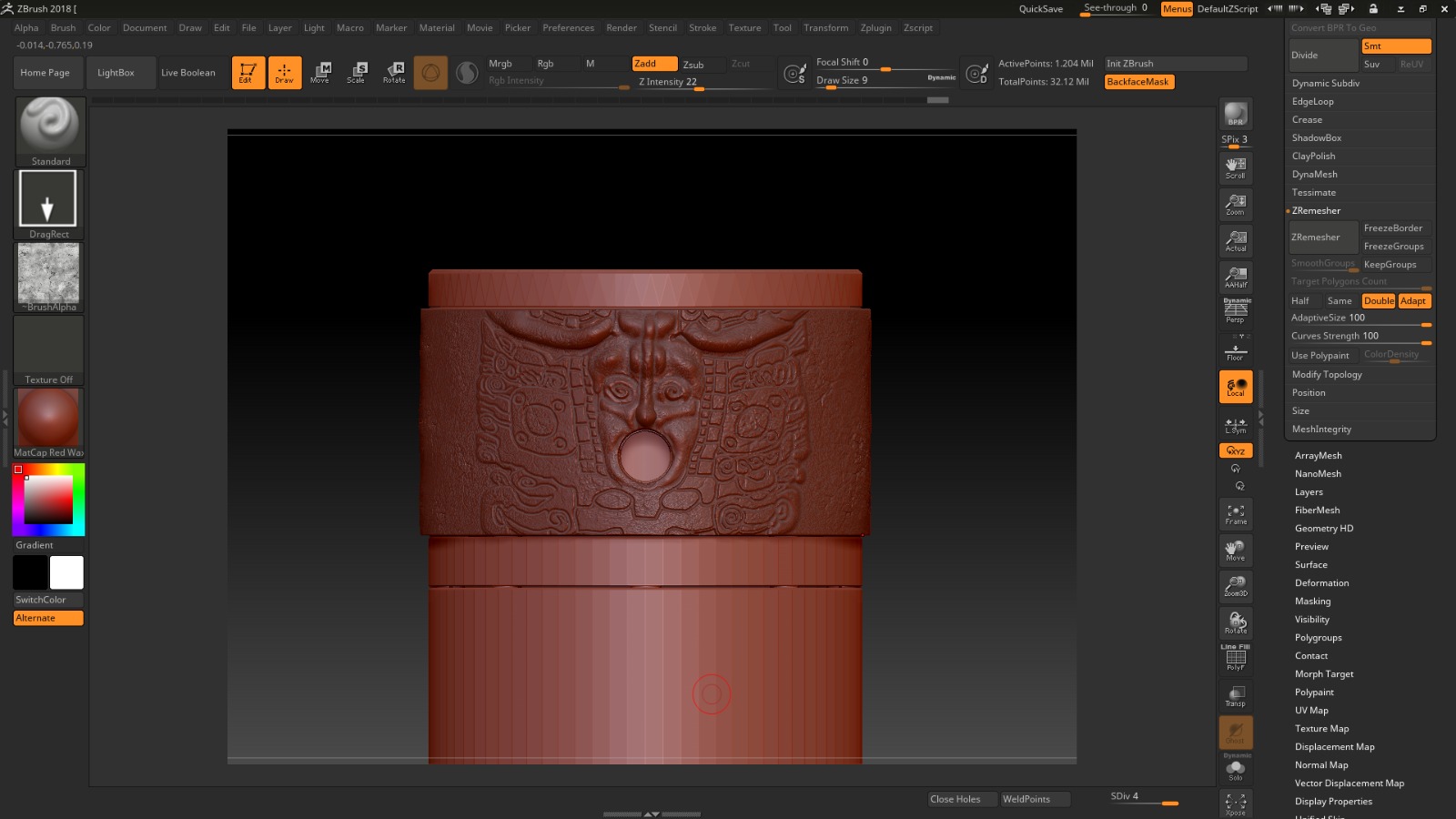

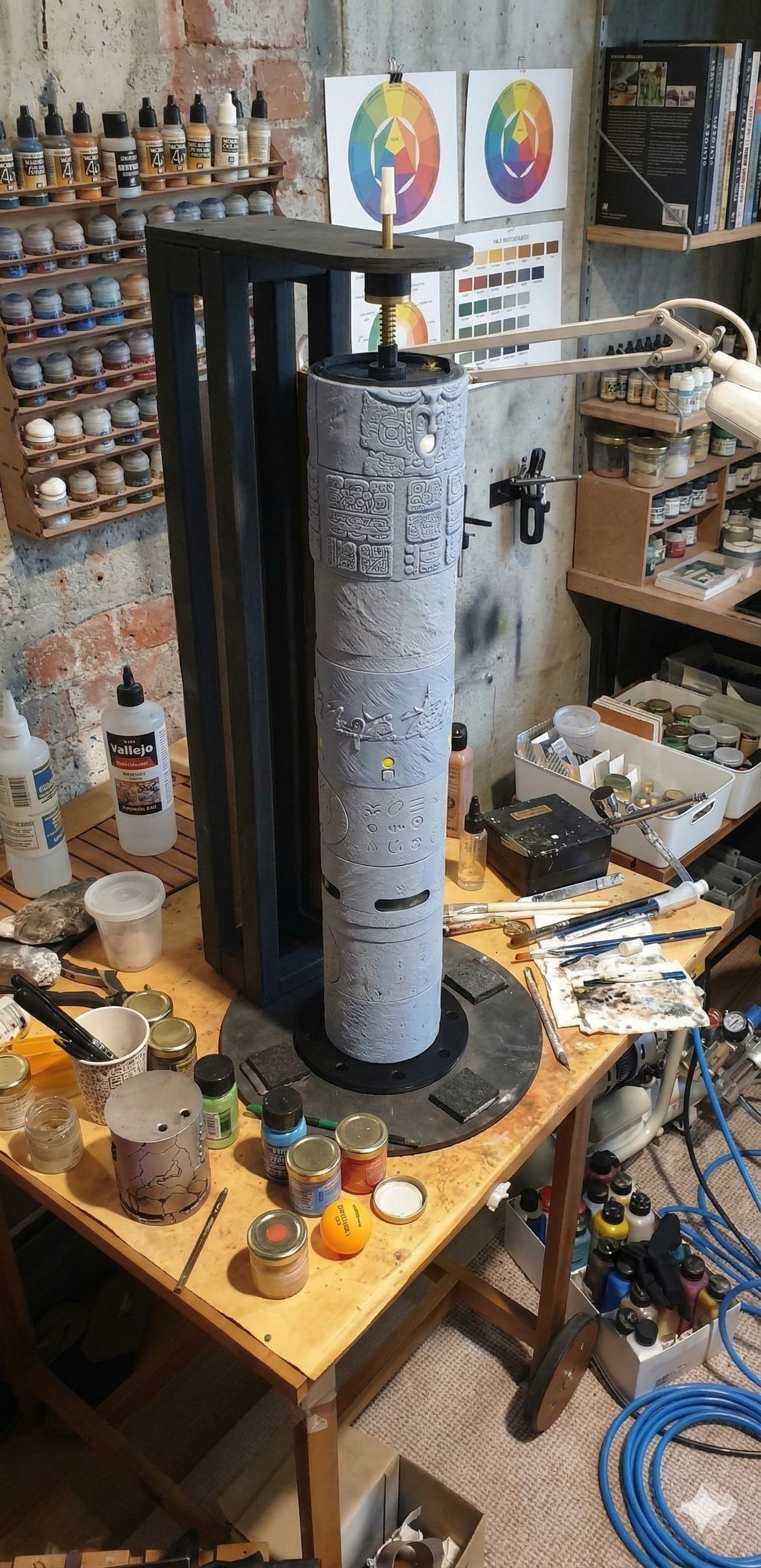

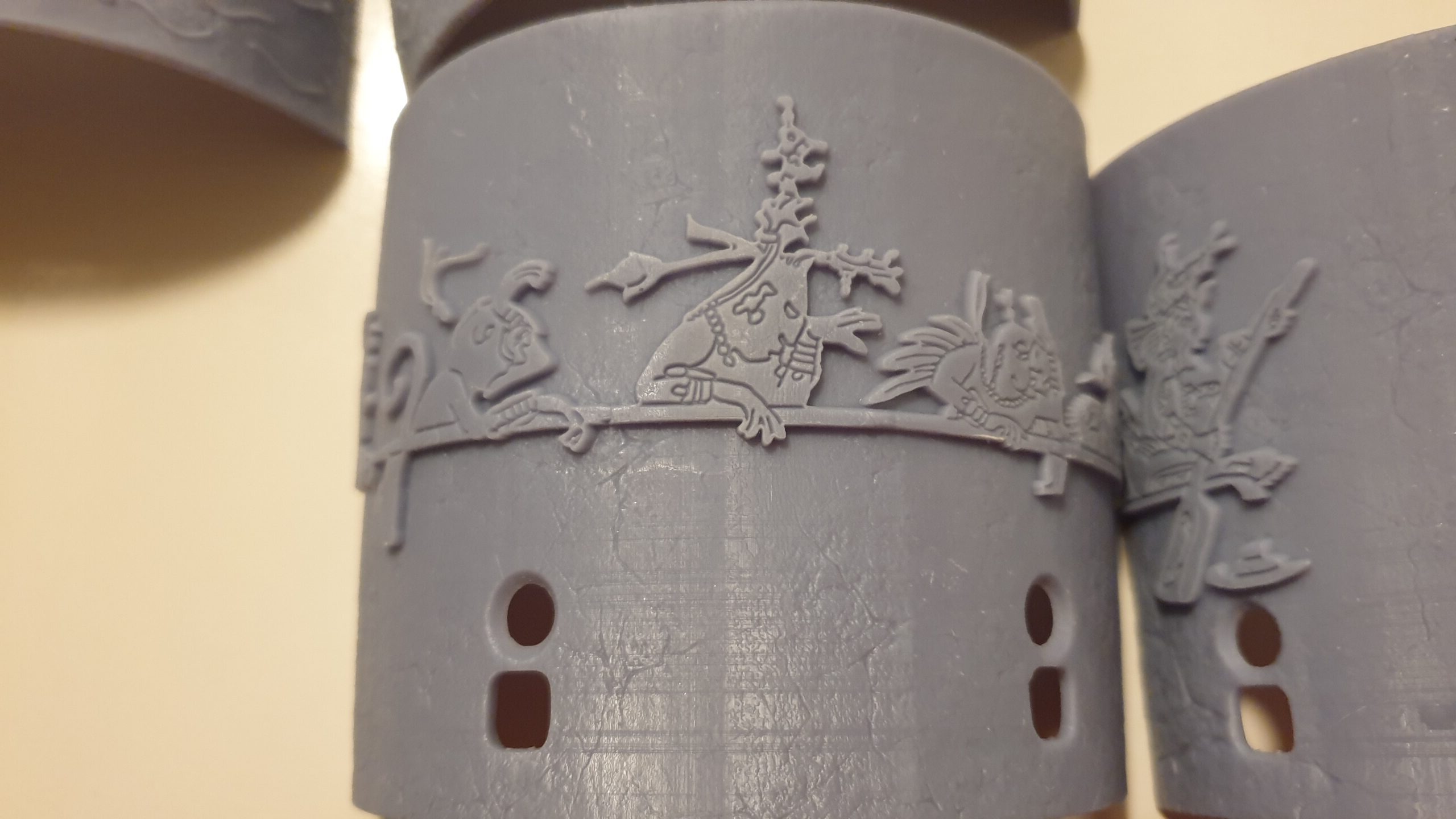

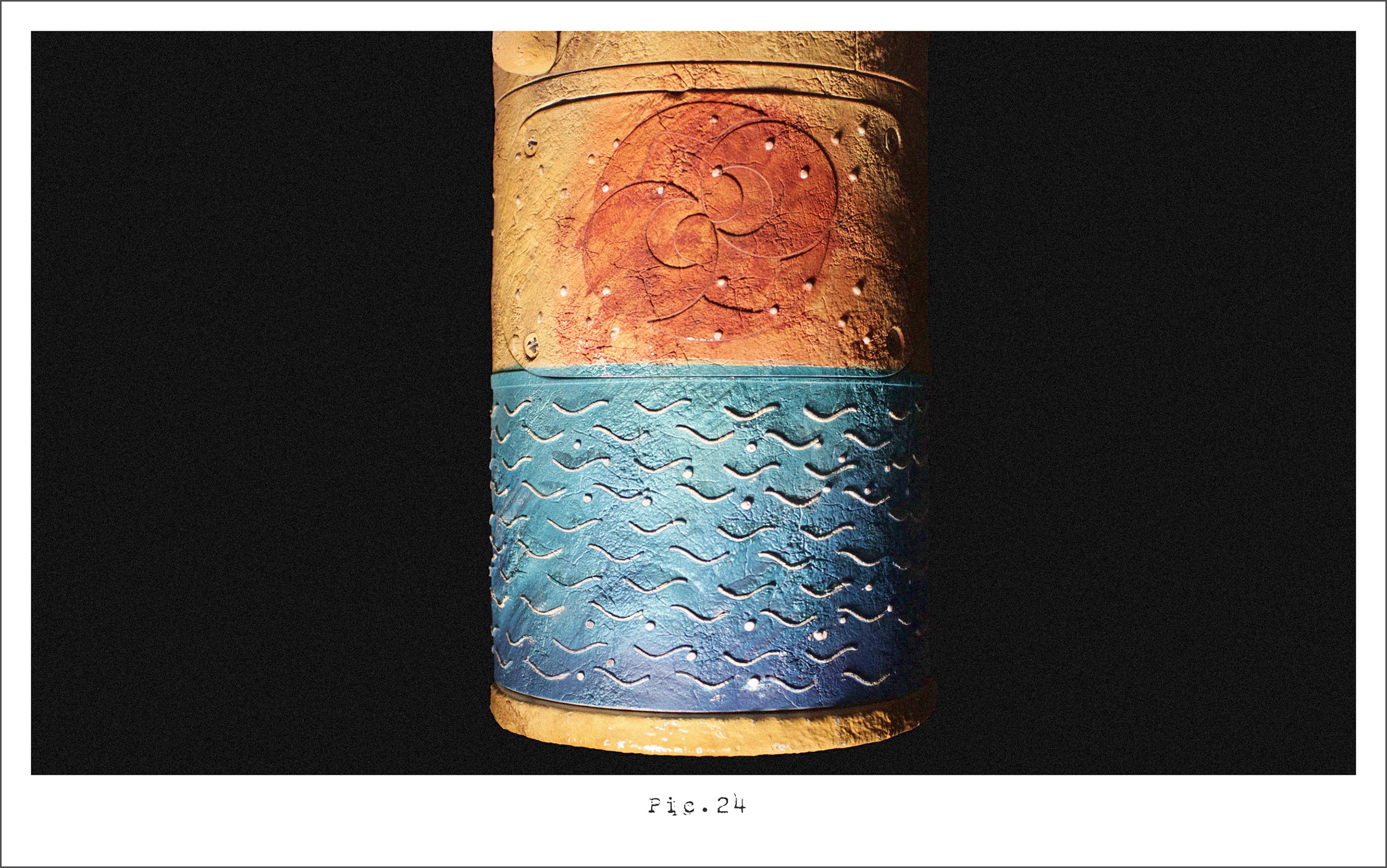

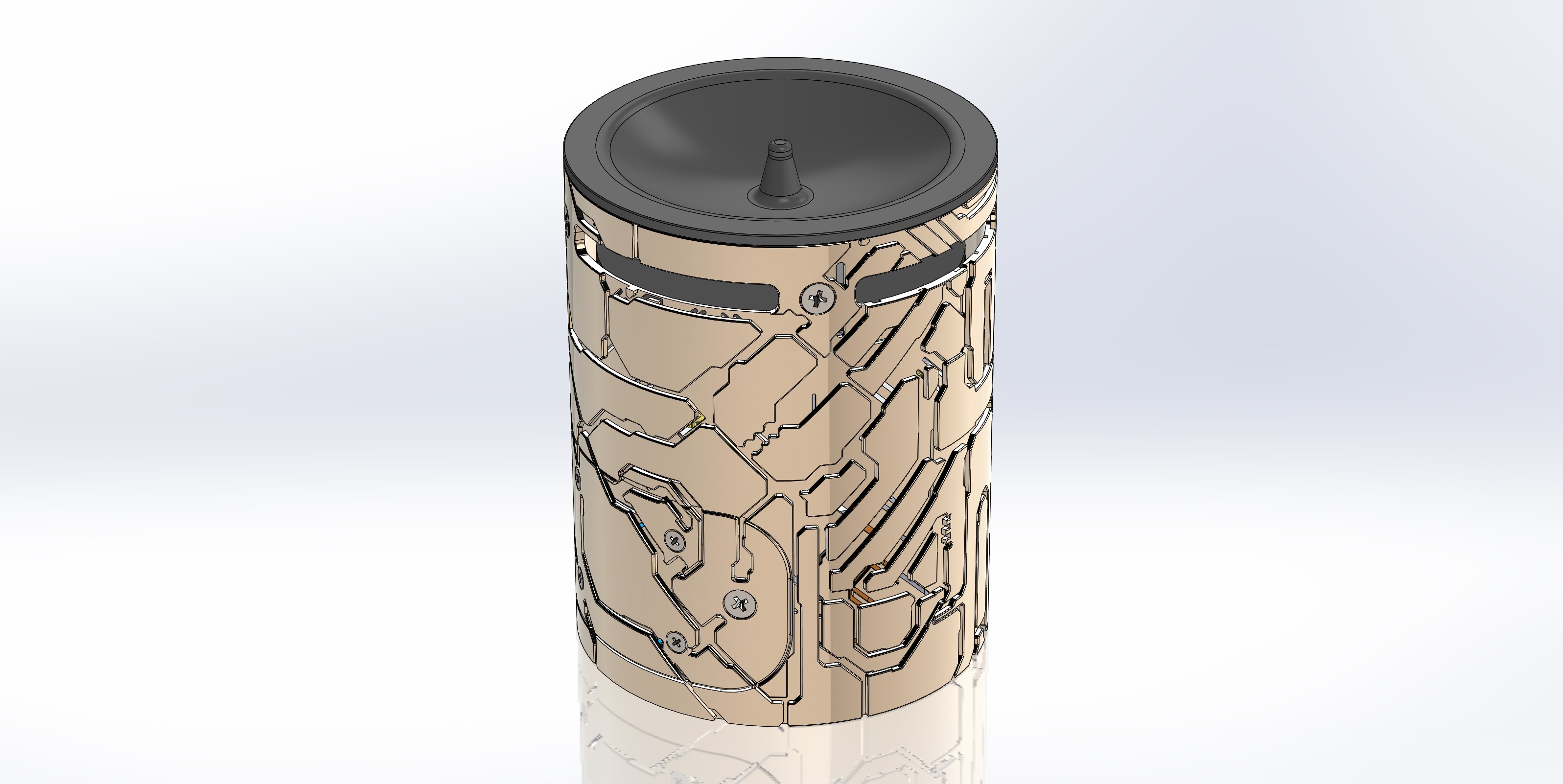

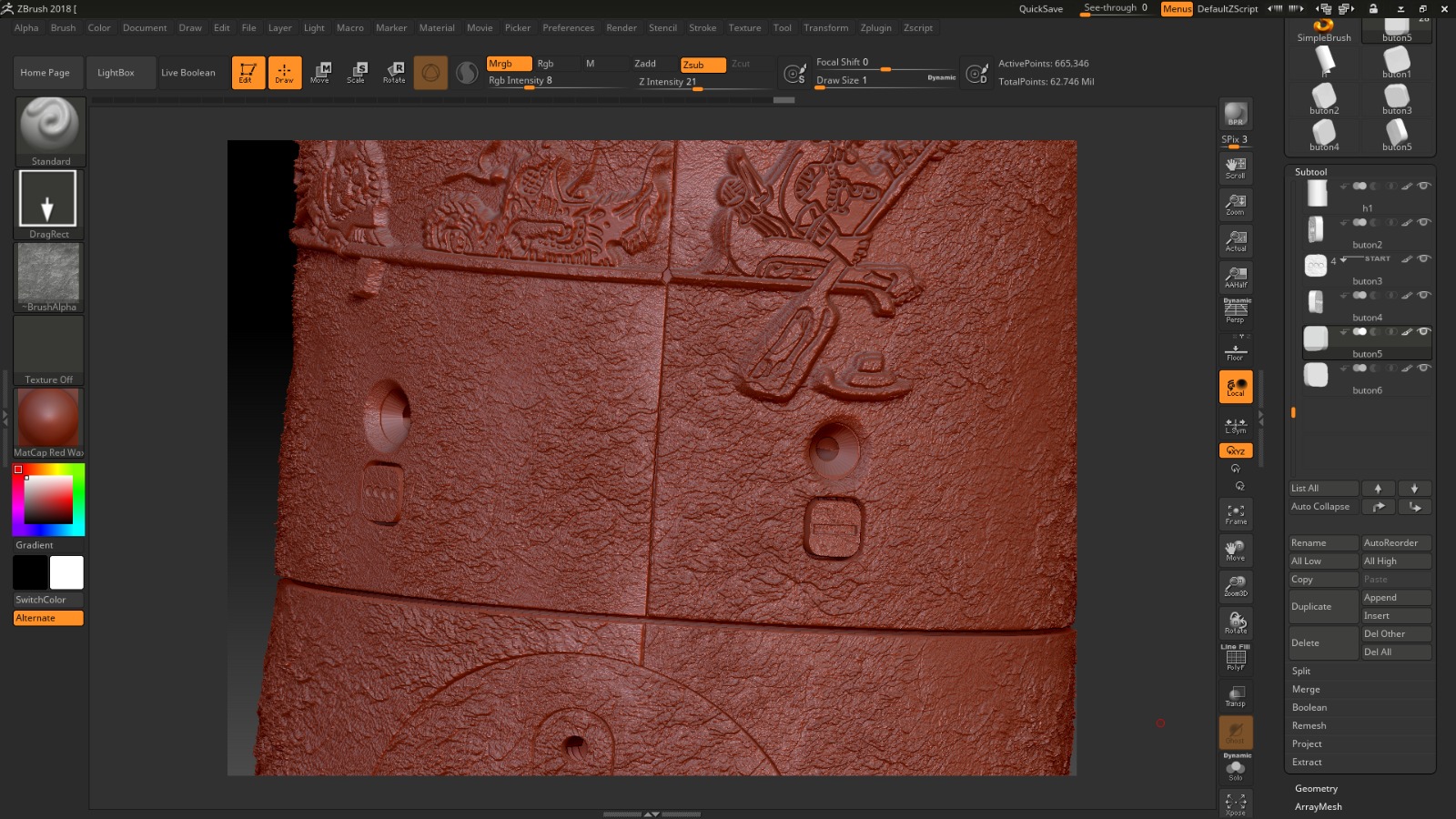

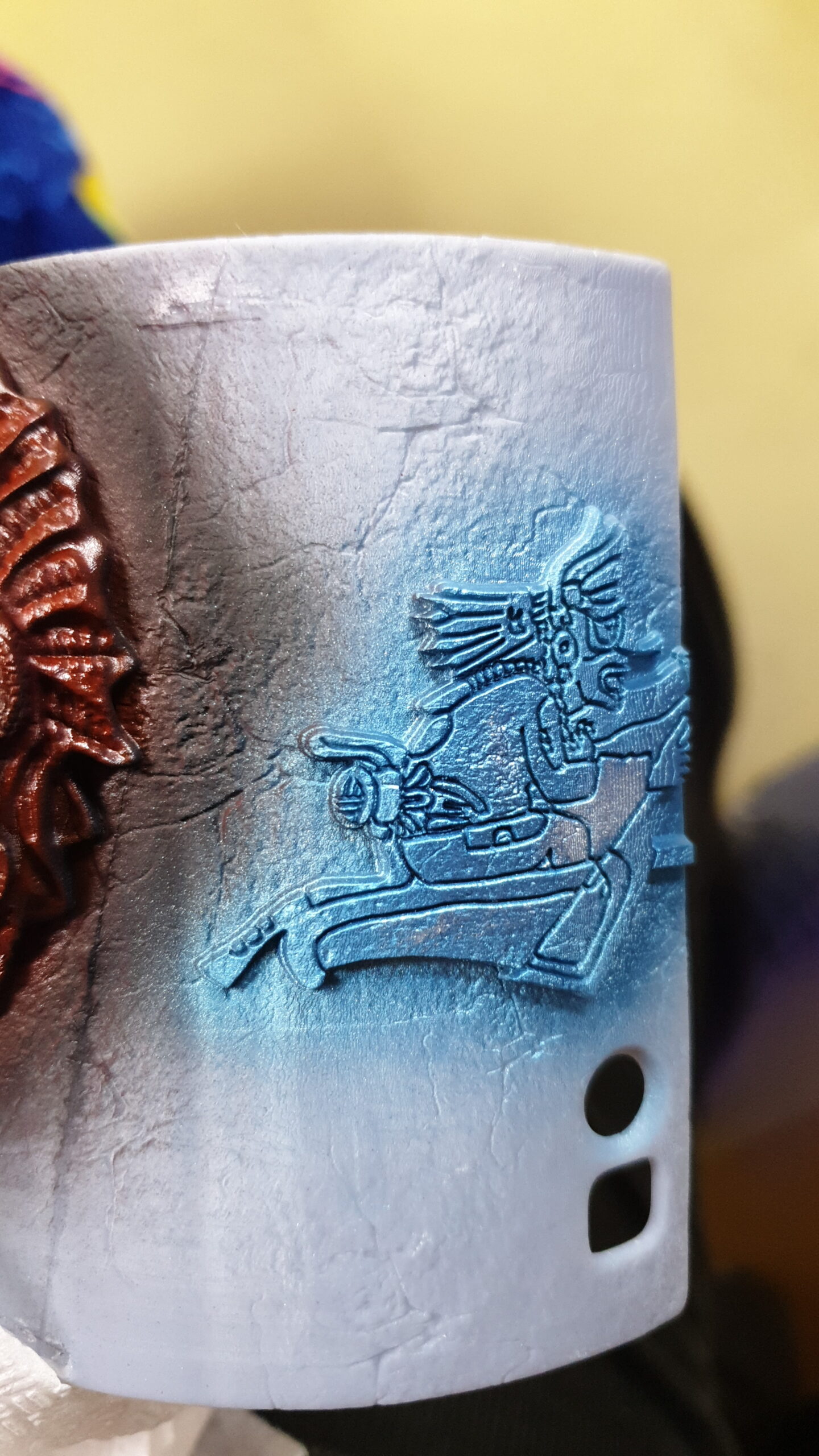

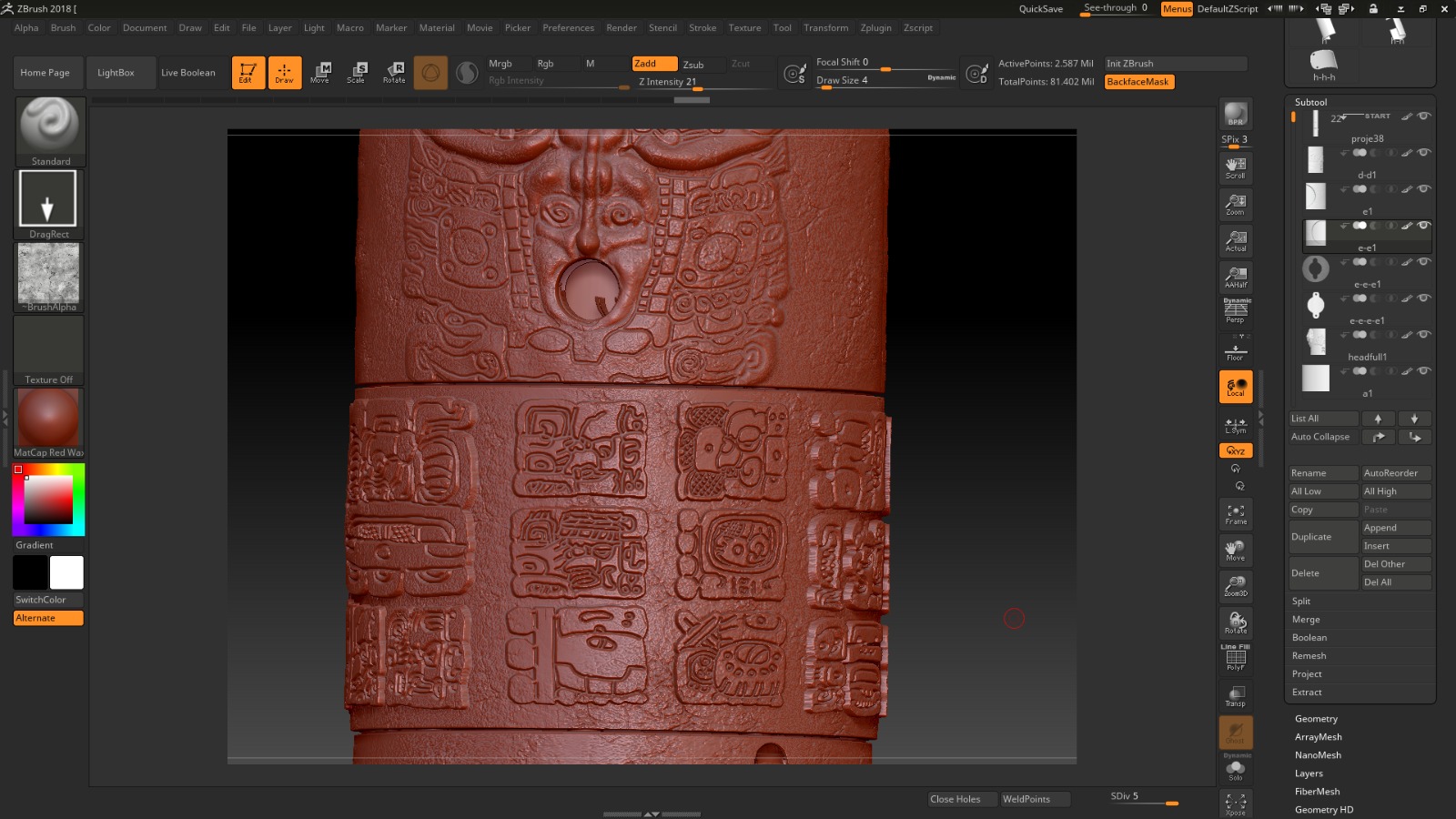

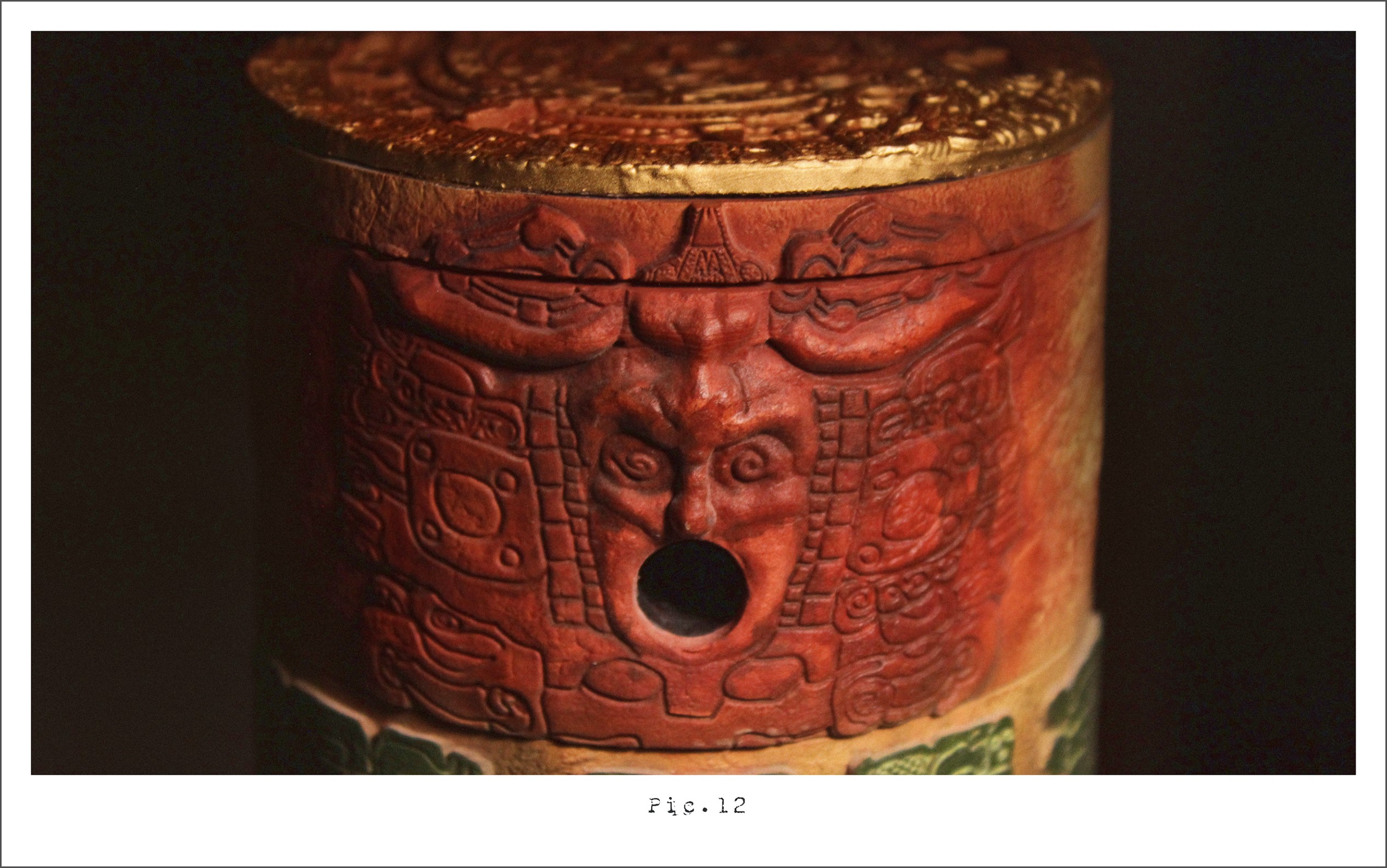

The physical form and surface language were developed using digital sculpting tools, with all exterior components produced via SLA printing. Each part was then hand-finished using airbrush techniques, aging processes, and fine detailing to achieve a diorama-level realism. The goal was to eliminate any perception of a manufactured object and instead present the system as a believable archaeological artifact.

The interaction begins with a simple, grounded action—powering the object via an internal battery—before gradually revealing increasingly complex layers of behavior. This progression mirrors the narrative arc, transitioning from ancient mystery to advanced technology.

The Mayan Puzzle is not a standalone device, but a system of interdependent mechanisms combining mechanical engineering, embedded electronics, and storytelling. Designed and built entirely from scratch, it explores how physical constraints, narrative context, and system integration can converge into a single cohesive artifact—where function, form, and experience are inseparable.
